Compliance Standards
ASTM D633
Applications
To test tensile adhesion strength of thermal spray coatings according to ASTM-C633. This test method covers the determination of the degree of adhesion (bonding strength) of a coating to a substrate or the cohesion strength of the coating in a tension normal to the surface.
Details

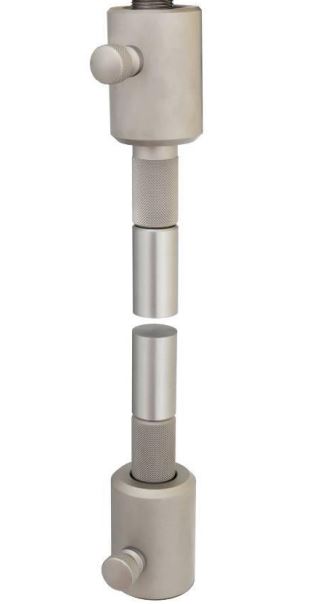

- A 25mm diameter steel cylinder end is sprayed with the required coating.
- Another cylinder with the same diameter (25 mm) is glued on top of this.
- After positioning this assembly into the tensile testing machine they are pulled apart.
- Maximum pull stress is recorded on tensile machine.
Scope of supply
- 2 insert holders with coupling Af318 (incl. 2 threaded inserts and 2x M16 grub screws)
- 2 test cylinders

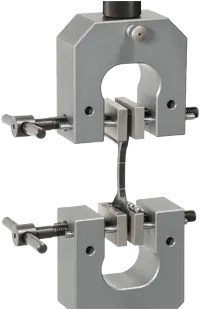

Tensile force capacity |
5 kN |
Opening |
0 - 30 mm |
Clamping surface |
30 x 50 mm (H x W) |
Weight |
0.25 kg each grip (without jaws) |
Temperature Range |
0°C - +70°C (depending on jaws) |
Body |
Anodized aluminium |
