Compliance Standards
ISO 283 (Type C), BIS 1370 (Type B)
Applications
To prepare test samples of Conveyor / Transmission belts as per ISO 283 & IS 1370 Standards.
Notes
(1) No warranty is applicable in case of punch die as smooth & uninterrupted operation of dies depends on various other governing factors such as Proper Alignment of dies, Bottom Support, Technical skills of the operator etc.
(2) This is purely visual and skill based work. Any random un-skilled operator can damage the die and EIE shall not be held responsible for the same.
(3) Use of Saag Wood / Teak Wood as bottom support to withstand the actual force of press after the specimen has been cut is highly recommend. Die shall not be used without reliable Saag Wood / Teak Wood as bottom support.
Total Length |
380 mm |
Gripping portion at the top |
63 mm |
Gripping portion at the bottom |
63 mm |
Radius |
350 |

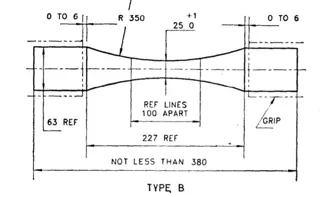

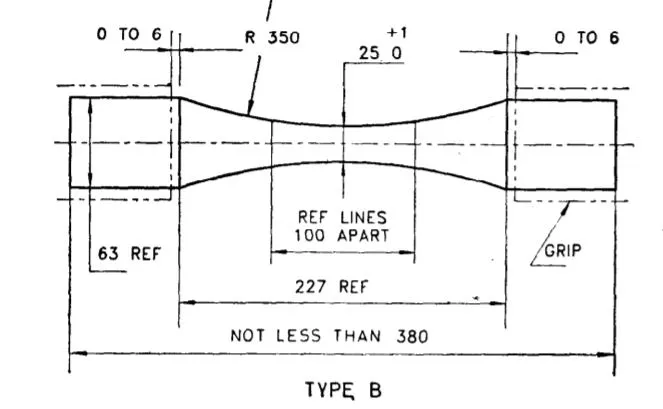

Width of narrow section |
25 mm |
Possible specimen Thickness cutting size |
22 mm |
