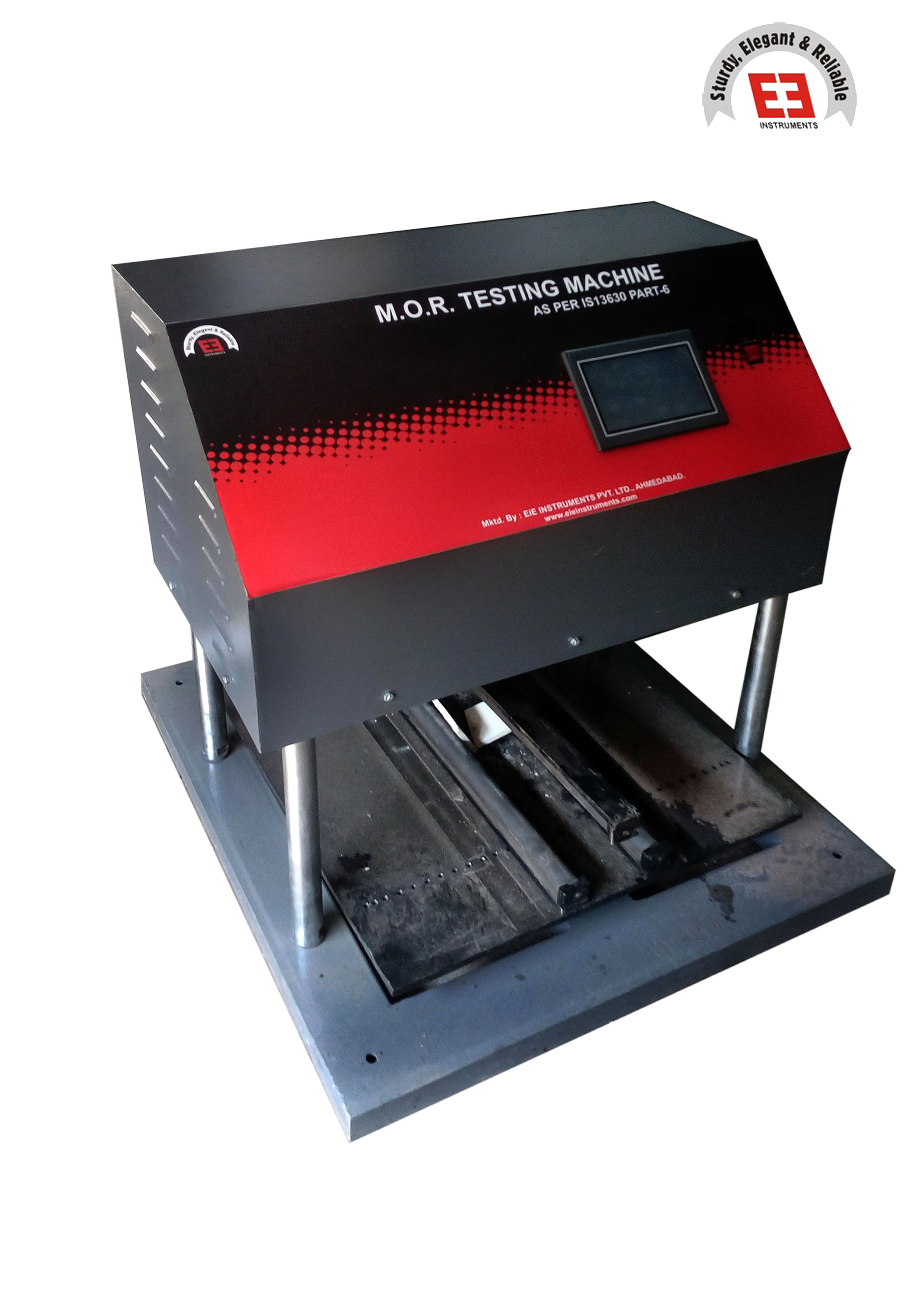

MOR TESTING MACHINE-1000 KGF-UP TO 60 X 60 CM TILES-SERVO CONTROLLED (BIS 13630 PART 6, ISO 10545-4)

MOR TESTING MACHINE-1000 KGF-UP TO 60 X 60 CM TILES-SERVO CONTROLLED (BIS 13630 PART 6, ISO 10545-4)

Model Number : TC-104EH6060S

IS: 13630 (Part - 6), ISO 10545 (Part-4)


Compliance with following international standards:

 IS : 13630 (Part - 6), ISO 10545 (Part-4)

Introduction:

  1. Electro-Mechanical Design, quite and vibration free operation, Rate of loading controlled through Servo Motor & Servo Drive.
  2. Capacity    : 1000 kgf
  3. Least Count : 0.1 Kgf
  4. Accuracy    : 0.2% of Full Scale

Salient Features:

  1. Standard Digital Model with Load Cell
  2. Suitable for fired sample test on the same machine
  3. Suitable for MOR Test of Ceramic Tiles / Bars as per IS0 : 10545 (Part-4) and IS : 13630
  4. Direct reading possible for different shapes of tiles (Square, Rectangular and Round)
  5. Direct Display of Load / Collapsing Force
  6. Selectable Test Units - Kg, KN
  7. Auto-stop upon completion of Test.
  8. Provision for emergency switch in case, if user wants to stop the load applicator at certain height
  9. With embedded 7" touch screen HMI controller.
  10. INTERGERATED SERVO MOTOR WITH DRIVE to control rate of Loading.
  11. PACE RATE CONTROLLING ACCURACY 1%
  12. With special guard to protect the operator against Ceramic splinters
  13. With 2 Rubber Lined rollers of 30 mm diameter
  14. With adjustable Test Span
  15. With Auto-Calibration facility using standard Cast Iron Weights and standard code (Weights will not be supplied with the machine)
  16. Complete Unit is powder coated in attractive shades
  17. Operation on 230 Volt, 50 Hz, Single Phase, AC Supply
  18. Can control the rate of loading @1 Newton per mm square per second.

Support Rod and Central Load Applicator:

  1. 02 Nos. cylindrical support rods and 01 central load applicator rod covered with rubber
  2. One cylindrical support rod is slightly pivotable
  3. Other cylindrical support rod is slightly rotatable about its own axis.
  4. Diameter of all Metal rods : 20 ± 1 mm
  5. Thickness of rubber : 5 ± 1 mm
  6. Hardness of rubber : 50 ± 5 mm

Supplied with MOR Software (Optional accessories):

  1. PC Software to log & Modify the generated date
  2. Two way communication with the machine
  3. Direct reading of MOR value and Breaking strength in excel format
  4. Reading can be saved and printed from the computer
  5. Connection through RS-232 port
  6. User can start/stop the machine form the computer
  7. User can enter Batch no, Date, Time, Dimensions of the test samples for report purpose
  8. User can enter company LOGO for report generation
  9. Can export the generated report in PDF, EXCEL, WORD Format.

Note:

  1. Use of 3 KVA servo controlled stabilizer is MANDATORY to avail warranty claims

Click here for working video : https://www.youtube.com/watch?v=-xRfUMpOHRw&t=278s


Accuracy

0.2% of Full Scale

Capacity

1000 kgf

Least count

0.1 Kgf

Overall Dimensions

914 X 914 X 1143(L X W X D) mm

Voltage / Power

230 Volt, 50 Hz, Single Phase, AC Supply
