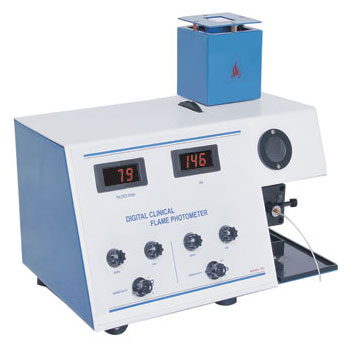

FLAME PHOTOMETER

Range

Na

0 to 100

K

0 to 100

Ca

10 ppm (Optional)

Li

10 to 100 (Optional)

Sensitivity

Na

05 ppm

K

05 ppm

Ca

10 ppm (Optional)

Li

05 ppm (Optional)

Accuracy

± 2 % upto 40 ppm,± 5 % above 40 ppm

Readout

21/2 digit bright red LED display

Ignition

Inbuilt electronic ignition by press of a switch

Measurement

One element at a time

Repeatability

± 2 counts

Detector

Silicon Photodiode

Filters

Narrow band interference glass filters

Nebulizer

Black Bakelite, axial flow type

Flame

LPG & dry oil free air SYSTEM

Warm up time

10 minutes

Power

230V ± 10% AC,50Hz

Air Supply

By oil free mini compressor unit with pressure regulator

Combustion

Controlled by precision regulator

Weight

Main unit (7.5 kg), compressor (8 kg)

Dimensions

375 x 245 x 220 mm (Approximately)

Optional Accessories

Additional Filter Calcium (CA)

@ Rs 6360.00

Additional Filter Lithium (Li)

@ Rs 6360.00
