MOR TESTING MACHINE

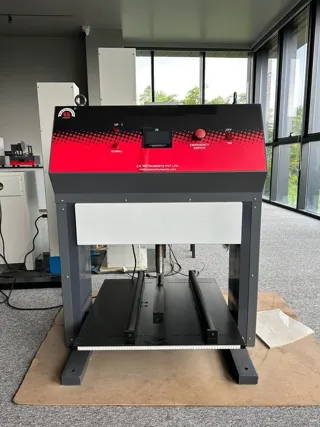

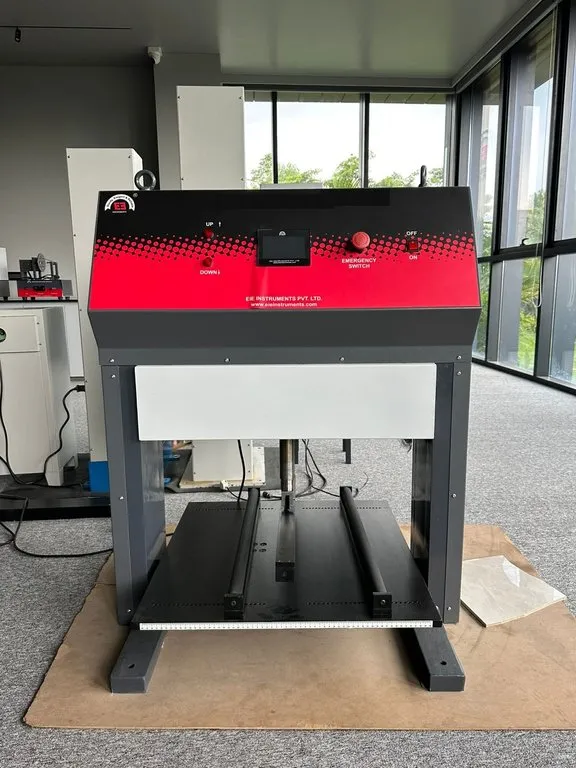

MOR Testing Machine

Model Number : TC-104EH100

Compliance Standards : IS : 13630 (Part - 6), ISO 10545 (Part-4)

As per IS : 13630 (Part - 6), ISO 10545 (Part-4), with TOUCH SCREEN control panel and automatic pace rate control to control the rate of loading at 1 Newton per mm square per second. Capacity 1000 kgf. Least count 0.1 kgf. with adjustable test span to accommodate different size tile specimen up to 100 x 100 cm. Direct reading of MOR value in KN or Kgf. Working on 230 V AC single Phase 60 Hz. PC connectivity with software available at extra cost. Detailed description as per the following pages.

FORCE CAPACITY
  • 500 KGF
  • 1000 KGF
ACCOMMODATES TILE SIZE
  • 300 X 300 MM
  • 600 X 600 MM
  • 1000 X 1000 MM
  • 1200 X 1200 MM
  • 800 X 1200 MM
Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Compliance with following international standards:
 IS : 13630 (Part - 6), ISO 10545 (Part-4)

Introduction:
Electro-Mechanical Design, quite and vibration free operation, Rate of loading controlled through AC drive.
  • Capacity        : 1000 kgf
  • Least Count  : 0.1 Kgf
  • Accuracy       : 0.2% of Full Scale
Salient Features:
  • Standard Digital Model with Load Cell
  • Suitable for fired sample test on the same  machine
  • Suitable for MOR Test of Ceramic Tiles / Bars as per IS0 : 10545 (Part-4)  and  IS : 13630
  • Direct reading possible for different shapes of tiles (Square, Rectangular and Round)
  • Direct Display of Load / Collapsing Force
  • Selectable Test Units - Kg, KN
  • Auto-stop upon completion of Test.
  • Provision for emergency switch in case, if user wants to  stop the load applicator at certain height
  • With TOUCH CONTROLLED operation on Digital panel.
  • INTEGRATED AC INDUCTION MOTOR WITH DRIVE to control rate of Loading.
  • With special guard to protect the operator against Ceramic  splinters
  • With 2 Rubber Lined rollers 30 mm diameter
  • With adjustable Test Span
  • With Auto-Calibration facility using standard Cast Iron Weights and standard code (Weights will not be supplied with the machine)
  • Complete Unit is powder coated in attractive shades
  • Operation on 230 Volt, 50 Hz, Single Phase, AC Supply
Note : 3 KVR servo controlled stabilizer is recommended

Technical specification
up-botton

Design

Electro-Mechanical

Operation

Quiet and Vibration free

Controlling System

AC Variable Frequency Drive with AC Induction Motor

Load cell Capacity

1000 kgf (10 KN)

Least count for load

10 grams

Load resolution

0.01 kg

Test units

KG, KN Selectable

Motor Speed Control

Through AC Drive

Accuracy

0.2% of full scale

Can accommodate

Maximum tile size of 1000 x 1000 mm (100 x 100 cm)

Display

LCD Display

Construction

Mild steel body

Paint

Powder coating

Power Supply

230 volts, 50 hz, single phase, AC Supply
