Complies with following International Standards:

IS : 13630 (Part - 1), EN ISO : 10545 (Part - 2)

Application:

Suitable For measurement of Diagonal Linearity for Tile size (cm) : 45 x 45. Please specify your required tile size measurement at the time of order.

Key Features:

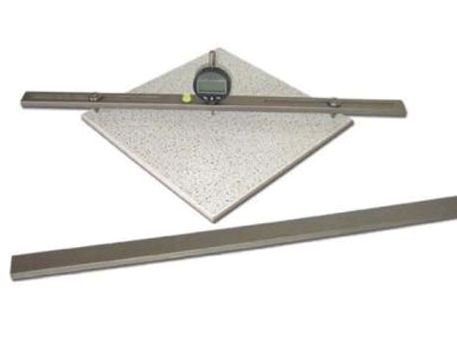

• These gauges are suitable for the fast determination of Flatness or Diagonal Differences of ceramic tiles, measured across the diagonal dimension.
•  it comprises of a steel bar with two calibrated feet, which can be set at varying distances apart.
• Also, consists of a spherical bubble and a 60mm diameter dial gauge, marked in 1/100mm increments.
• Each unit is supplied with a ground calibration plate, in a wooden box.

Following Accessories will be the part of standard apparatus:

1. Digital Gauge

• Make : REPUTED MAKE
• Range : 0 - 60 mm
• Accuracy : 0.01 mm
• Quantity : 01 No

2. Locating Studs (pins)

Two  stainless steel calibrated feet
