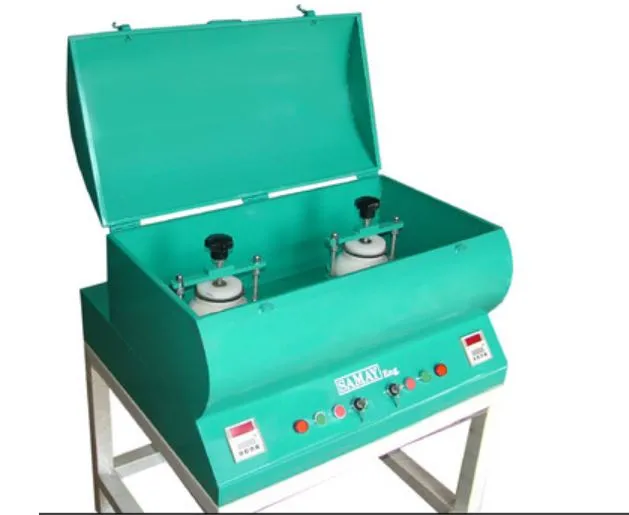

RAPID POT MILL - WITH TIMER

RAPID POT MILL - WITH TIMER

Model Number : TC-121P2

Red, Double Pot mill, with timer.

NO. OF POTS
  • SINGLE POT
  • DOUBLE POTS
Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Applications:

Used for rapid grinding of frits, glaze, color and various compounds for laboratory tests. Indispensable for ceramics manufacturers, dye works, cement factories, research laboratories, pharmaceutical companies, art schools etc.


Salient Features:

  • Aesthetical exterior appearance
  • Unique and self contained design
  • Mild steel structure, which is powder coated in attractive shades
  • Safe, Quiet & smooth operation
  • Fully variable speed control
  • Digital RPM Indication
  • Jar is made of ceramic material or Alumina Material
  • Noise reduction steel cabinet and micro switch for better performance


Technical Specification

•No of Pots (Jars):02 No
•Volume capacity of the pot:500 cc (0.5 Liters)
•RPM:20-400 RPM
•Jar Material:Made from Alumina / Ceramic Material
•Speed control:Dedicated AC Drive (Optional At Extra Cost)
•Timer Range:0-99 Minutes
•Motor:0.5 HP, 1440 Rpm
•Voltage:440 Volts
•Power:Three Phase
•Frequency:50 Hz



Technical specification
up-botton
RAPID POT MILL - DOUBLE POTS - 500 CC - WITH TIMER-

Overall Dimensions in Inches (L x W x H)

37 X 32 X 45
