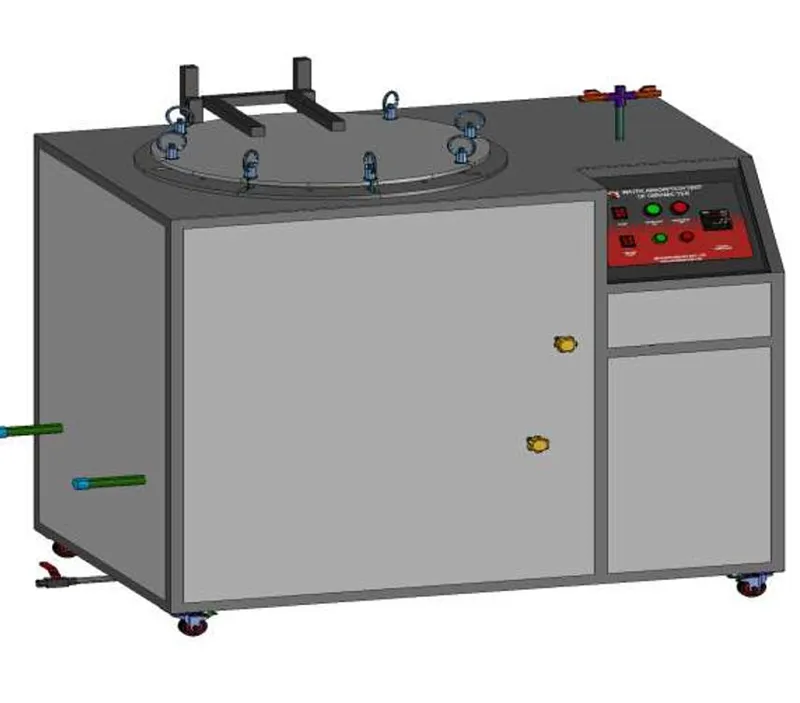

WATERBATH FOR WATER ABSORPTION TEST OF CERAMIC TILES
Model Number : TC-103NR
Complies with International Standards: IS : 13630 (Part - 2), ISO : 10545 (Part-3). Can accommodate tiles sizes up to 300 x 300 mm.
TYPE OF METHOD
- BOILING WATER METHOD
- VACUUM METHOD
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Complies with International Standards:
IS : 13630 (Part - 2), ISO : 10545 (Part-3) , IS 2556
Purpose:
For water absorption test of ceramic tiles. The tiles will be placed vertically in the slots provided to conduct the water absorption characteristic test.
Note:
Also Need To Have Following Instruments To Complete The Test Procedure (WILL BE SUPPLIED AT EXTRA COST)
- Desiccator
- Silica gel
- Hot air oven
- Electronic balance (5 kg x 1 gm)
Technical specification
|
Construction |
Double walled in construction |
|
Inner chamber |
Mirror polished Stainless Steel material S.S. - 304 Grade |
|
Exterior body |
Mild steel material |
|
Paint |
Powder coated in attractive shades |
|
Lid of the bath |
Matt finished Stainless Steel material S.S. - 304 Grade |
|
Insulation |
Glass wool insulation for minimum heat loss |
|
Temp Range |
5 °C above ambient to 100 °C |
|
Temp control |
Microprocessor based Auto-Tune PID Digital Temp Indicator cum controller |
|
Temp, Accuracy |
± 0.5 °C |
|
Temp. Sensor |
PT-100 Sensor |
|
Stirrer |
High speed stirrer for uniform temp distribution |
|
Stirrer Motor |
Electric motor of 1/20 HP |
|
MOC of Stirrer shaft |
Anti - corrosive Material |
|
MOC of Propeller |
Anti - corrosive Material |
|
Heating elements |
04 KW |
|
Can accommodate |
Test specimen up to 300 X 300 mm (AS PER BIS 13630-2 & ISO 10545-3 Standard) |
|
Operation on |
230 Volts, 50 Hz, Single Phase, AC Supply |
|
Supplied with |
Vertical stand made from strong S.S. rod to place 20 x 20 cm ceramic tiles. Stand will be removable |
|
Stirrer is fitted on side of the bath, which allows obstruction free usage of working area. |
|
|
Overall Dimensions |
970 X 630 X 710(L X W X D) mm |
Accessories
HOT AIR OVEN-DIGITAL-45X45X45 CM-250C-INNER S.S. CHAMBER-
Double walled, inner chamber S.S.304, Outer CRC powder coated , 65 mm thick glass wool insulation , 80/20 nichrome heating elements placed under ribs at bottom and sides for uniform heat distribution Temp. Range. 50˚C to 250˚C , Auto tune Dual Display Digital, forced air circulation, Working on 230 Volts AC Single Phase.
