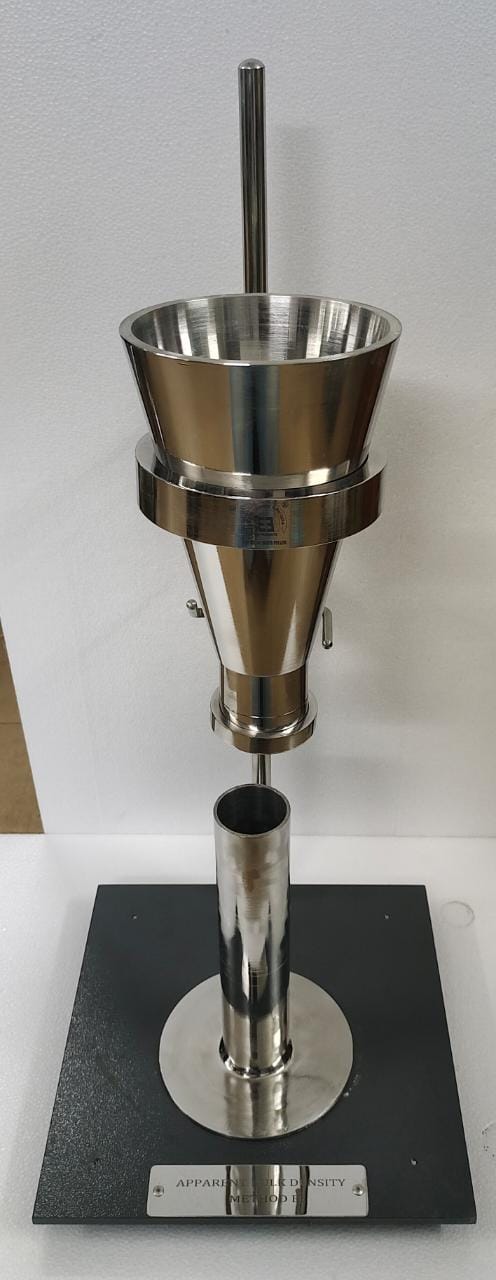

BULK DENSITY APPARATUS - ASTM D1895 METHOD-B

BULK DENSITY APPARATUS - ASTM D1895 METHOD-B

Model Number : EIE-BDA-B

The target of the ASTM family Method B is primarily used to measure the apparent density of larger coarse granular materials, dice or pellets that cannot be poured readily through the method A funnel. The material under test is allowed to flow into a cylindrical cup with a known volume of 400cm3.


Details:

  1. The target of the ASTM family Method B is primarily used to measure the apparent density of larger coarse granular materials, dice or pellets that cannot be poured readily through the method A funnel. The material under test is allowed to flow into a cylindrical cup with a known volume of 400cm3.

Technical Specification:

  1. V-shaped funnel
  2. Measuring. cup 400cm3
  3. Stand with funnel shot off

Tests that can be conducted are:

  1. Apparent Density
  2. Bulk Factor
  3. Pourability

Net weight (in kg)

9

Width (cm)

24

Depth (cm)

33

Height (cm)

52
