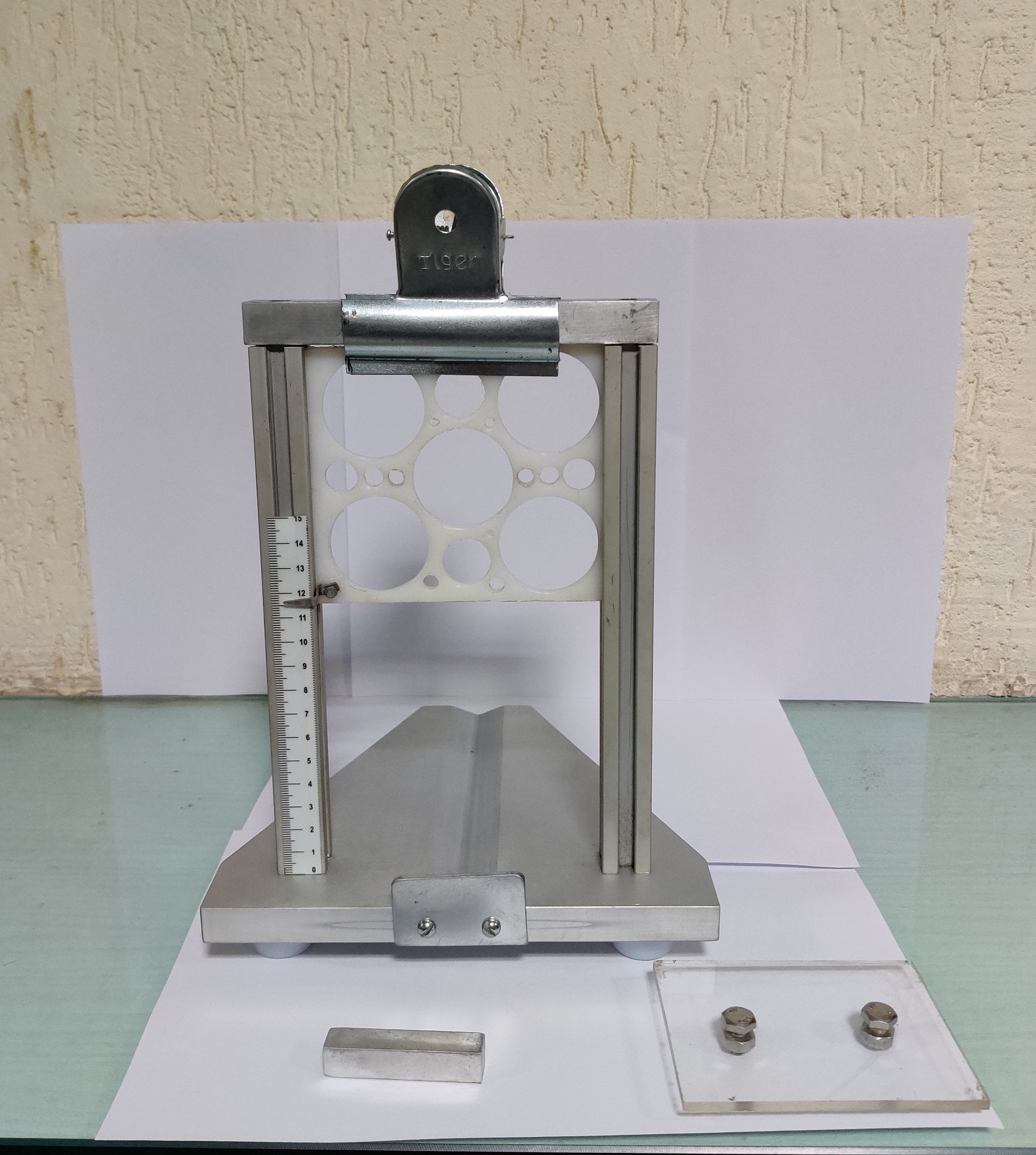

COLLAPSIBILITY TESTER FOR ALUMINIUM SQUEEZE TUBE ANNEALING TESTER AS PER DIN EN 16285

COLLAPSIBILITY TESTER FOR ALUMINIUM SQUEEZE TUBE ANNEALING TESTER AS PER DIN EN 16285

Model Number : EIE-222DIN

None


Compliance standard :

DIN EN 16285


Application :

The test is required for assessing the functional quality of aluminum collapsible Tubes.


Details specification :

  1. A standard load is allowed to fall on the empty tube and the resistance offered to this load is measured.
  2. Designed For tube of diameter  : 13.5, 9.8, 11 mm
  3. Scale                               : 0 to 120 mm
  4. Grooving radius              : 32 mm
  5. Grooving Depth              : 5.3 ± 0.2 mm
  6. Distance b/w stopper & shutter  : 32 mm
  7. Shutter weight               : 75 ± 0.1 Gram
  8. Height of the fall           : 115 ± 1 mm
  9. The auxiliary base plate is to be inserted in the apparatus.
  10. Complete with stand, shutter mechanism and scale.
