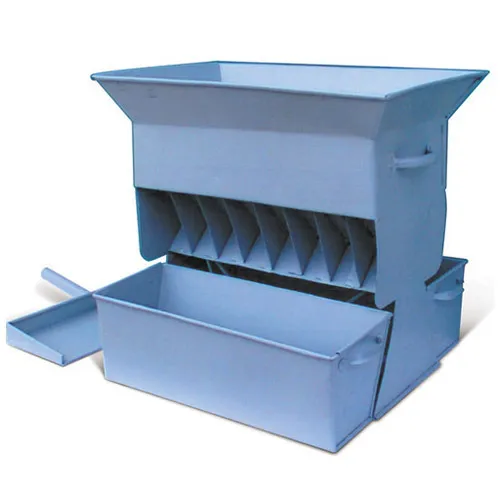

RIFFLE SAMPLE DIVIDER-G.I.-12.5MM (NO. OF SLOT : 14)

RIFFLE SAMPLE DIVIDER FOR SOIL & AGGREGATES

Model Number : EIE-ST-06-12.5/14

This equipment is crucial for preparing samples for other soil and aggregate tests like sieve analysis, specific gravity, water absorption, CBR Test, Proctor test etc., ensuring the samples used are representative of the entire batch. As per IS:1607/IS:2720(Part 1)/ASTM C702 / C702M - 18/BS 812-102:1989/EN 932-2:1999


Applications

To obtain a representative sample of aggregates by splitting a larger sample into smaller, more manageable portions without introducing bias. Used for rapid collection of the true representative sample from aggregate, sand and fillers.

Construction

Consist of a metal box fitted with a series of chutes of equal width which discharge the material alternatively in opposite directions into separate pans. The chutes of the riffle are steep enough to allow rapid flowing of the material. Each riffle sample divider supplied with two pans and one scoop.

Technical Details

  1. Common chute sizes range from 4.75 mm to 50 mm.
  2. Number of chutes and their width can vary (commonly 6, 8, or more chutes with varying sizes).
  3. MOC : G.I. or  S.S.


Overall Dimensions

380 X 325 X 640(L X W X D) mm
