DISSOLVED OXYGEN METER PORTABLE MODEL- MODEL  PDO-519-

DISSOLVED OXYGEN METER PORTABLE MODEL- MODEL PDO-519-

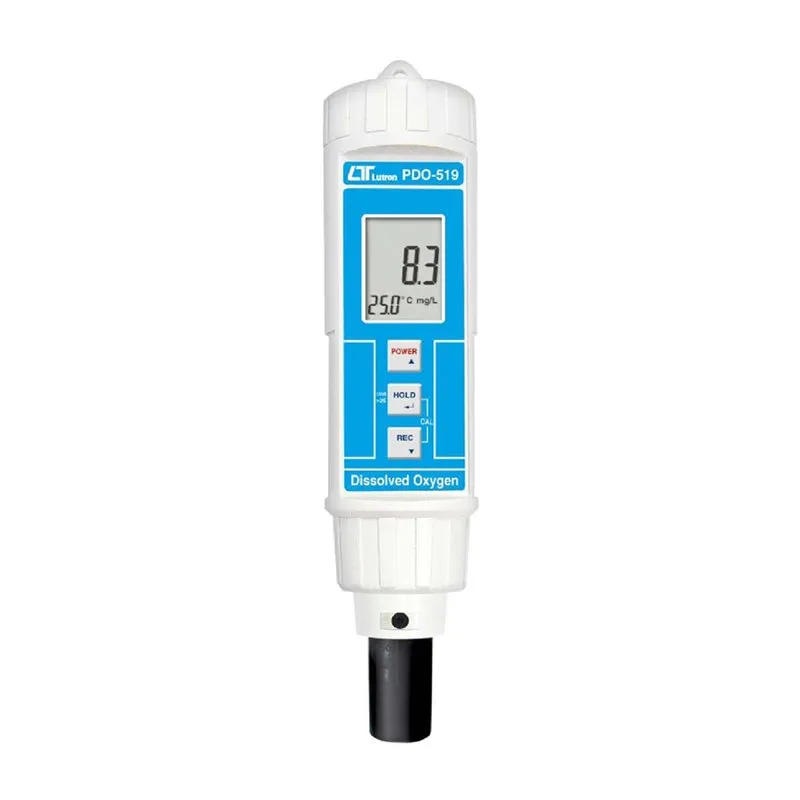

Model No: PDO-519

Display : 18 mm (0.7") LCD (Liquid Crystal Display) 3 1/2 digits. Detailed Specification as mention in following page.

This Digital Dissolved Oxygen Meter is supplied with a polarographic type probe with an incorporated Temp. sensor which serves for precise Dissolved Oxygen ( DO ) and Temp. measurement.




  • Applications for Aquarium, Medical research, Agriculture, Fish hatcheries, Laboratory, Water conditioning, Mining industry, Schools & Colleges, Quality control...
  • Heavy duty dissolved oxygen probe, probe head size can connect with BOD bottle
  • All in one Pen type Dissolved Oxygen Meter, easy operation.
  • Automatic Temp. compensation from 0 to 50 for sensor. ?
  • Microprocessor circuit assures high accuracy and provides special functions and features.
  • Multi‑display, show Dissolved oxygen and temperature at the same time.
  • Built in temperature measurement
  • Temperature unit can default to `C or`F
  • LCD with two display, easy readout.
  • Auto power off to save the battery life.
  • IP‑67 Water resistance.
  • Records Maximum and Minimum readings with recall.
  • Data hold function for freezing the desired value.
  • Use the durable, long‑lasting components, including a heavy duty & compact ABS‑plastic housing case.



SPECIFICATIONS :


  • Display LCD size : 29 mm x 28 mm. Dual function LCD
  • Circuit Custom one‑chip of microprocessor LSI circuit.
  • Measurement & Range Dissolved Oxygen 0 to 20.0 mg/L ( liter ) Air Oxygen 0 to 100.0 %. * For reference only
  • Temperature 0 to 50`C
  • Resolution Dissolved Oxygen 0.1 mg/L., Oxygen in Air 0.1 % O2 , Temperature 0.1`C
  • Accuracy Dissolved Oxygen ± 0.4 mg/L. Oxygen in Air ± 0.7% O2. For reference only Temperature ± 0.8 /1.5
  • Polarographic type oxygen probe with an incorporarted Temp. sensor.
  • Temp. Compensation 0 to 50`C * Automatic adjustment
  • Recall Records Maximum, Minimum readings with recall.
  • Power off Auto power off saves battery life, or manual off by push button.
  • Data Hold Freeze the display reading.
  • Sampling Time Approx. 1 second.of display
  • Operating Temp. 0 to 50`C
  • Operating Humidity Less than 80% RH.
  • Power Supply DC 1.5V battery ( UM‑4/AAA ) x 4 PCs.
  • Power Current Approx. DC 6.2 mA.
  • Weight 176 g/0.39 LB. * Include probe and batterry.
  • Protection IP‑65 : 0 to 50`C IP‑67 : 0 to 30`C
  • Dimension 180 x 40 x 40 mm ( 7.1 x 1.6 x 1.6 inch ).



Accessories

  • Soft carrying case (CA‑05A)
  • Included Operation manual
  • Spare Probe head with diaphragm OXHD‑04.. 2 PC.
  • Probe‑filling Electrolyte OXEL‑03
Overall Dimensions in Inches (L x W x H) 10.5 x 6 x 2.5
Weight (kg) 0.500
