SAYBOLT VISCOMETER-WITH TWO SAYBOLT TUBES-

SAYBOLT VISCOMETER-WITH TWO TUBES

Model Number : TM-048DM2

The Saybolt Viscometer is used to determine empirical measurement of Saybolt Viscosity of petroleum products at specified temperatures. The time it takes for a 60 ml sample to flow through a tube with a specified diameter (furol (3.150 mm) or universal (1.765 mm) ) is measured and reported in seconds. The viscometer can be used for temperatures between 25 and 50 °C.The viscometer includes waterbath, motorized stirrer, electric heater with digital temp.controller with control accuracy of ± 0.1°C. (The room temp. must be @ 20-21°C to achieve control accuracy) Refrigerated Model also available


Complies with IS:3117-2019/ ASTM D88

Construction Details:

  1. The apparatus consists of stainless steel bath with two sample cups
  2. The bath has a lid which contains a thermometer socket and a straight heater.
  3. Temperature is controlled by PID Digital Temperature indicator cum controller
  4. Stirring is done by FHP motorized stirrer.
  5. A thermometer can be inserted into the cup cover to cross check the Digital controller.
  6. Two jets - one universal and one furol can be screwed to the cup by a handle.
  7. Entire assembly works on 220 Volt, 50 hz, Single phase, AC Supply
  8. Universal Orifice: 2 pc
  9. Furol Orifice : 2 pc
  10. Thermometer Support: 2 pc
  11. Tube wrench : 1 set
  12. Saybolt viscosity flask, glass, 60 ml: 2 pc
  13. Stopper : 2 pcs
  14. Operation Instruction Manual & Conformity Certificate : 1 Pc

The Following accessories are available at extra cost

  1. ASTM/IP Glass Thermometers
  2. Digital Stop Watch (essential accessory)

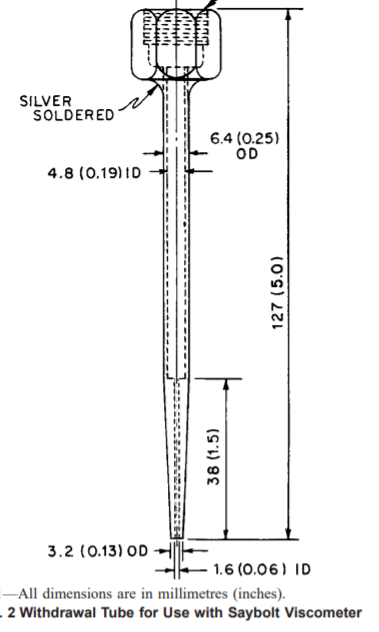

  3. Withdrawal Tube
  4. Strainer for Filtering


Overall Dimensions in Inches (L x W x H)

12 x 16 x 22

Weight (kg)

12.5
