WATER CONTENT OF BITUMEN EMULSION - IS 1211

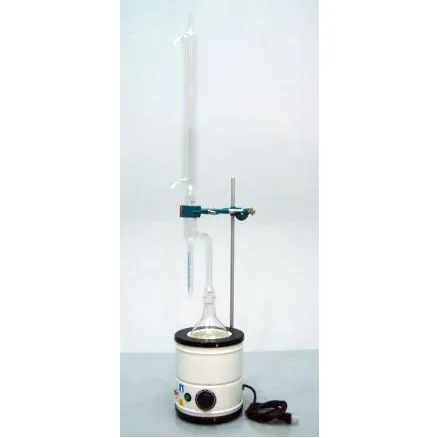

The Water Content of Bitumen Emulsion with Heater apparatus is specifically designed to accurately determine the moisture content in tar and bitumen emulsions, complying with IS 1211 and IP 291 standards. This apparatus is ideal for laboratories and testing facilities requiring precision in water content measurement in bituminous materials.

The set includes a 500 ml heat-resistant glass flask with a ground glass joint for secure sealing, ensuring accuracy in results. The apparatus also features a high-quality, heat-resistant glass condenser designed according to the specifications outlined in IS 1211, Figure 2. The receiving unit includes a ground glass joint and graduated tube, available in two sizes – 2 ml or 10 ml – as per user requirements (default size is 2 ml unless otherwise specified during ordering).

Supplied with a heater, this apparatus supports controlled heating for consistent results, making it a reliable tool for bitumen and tar analysis.

Compliance Standards

1. Indian Standard: IS 1211 – Methods for Testing Tar and Bitumen
2. International Standard: IP 291 – Determination of Water Content in Bitumen Emulsion

Applications

1. Designed for accurate moisture estimation in tar, bitumen emulsions, and related materials.

Salient Features

1. Heat-Resistant Glass Components: Ensures durability and safety during high-temperature testing.
2. 500 ml Flask with Ground Glass Joint: Secures the connection and prevents leakage.
3. High-Quality Condenser: Compliant with IS 1211 specifications for effective condensation.
4. Receiver Options: Choice of 2 ml or 10 ml graduated receiver for precision measurements.
5. Integrated Heater: Provides controlled heating to ensure reliable and consistent results.
