DIRECT READING DIGITAL PENETROMETER WITH DIGITAL TIMER - GEARED HEIGHT ADJUSTMENT

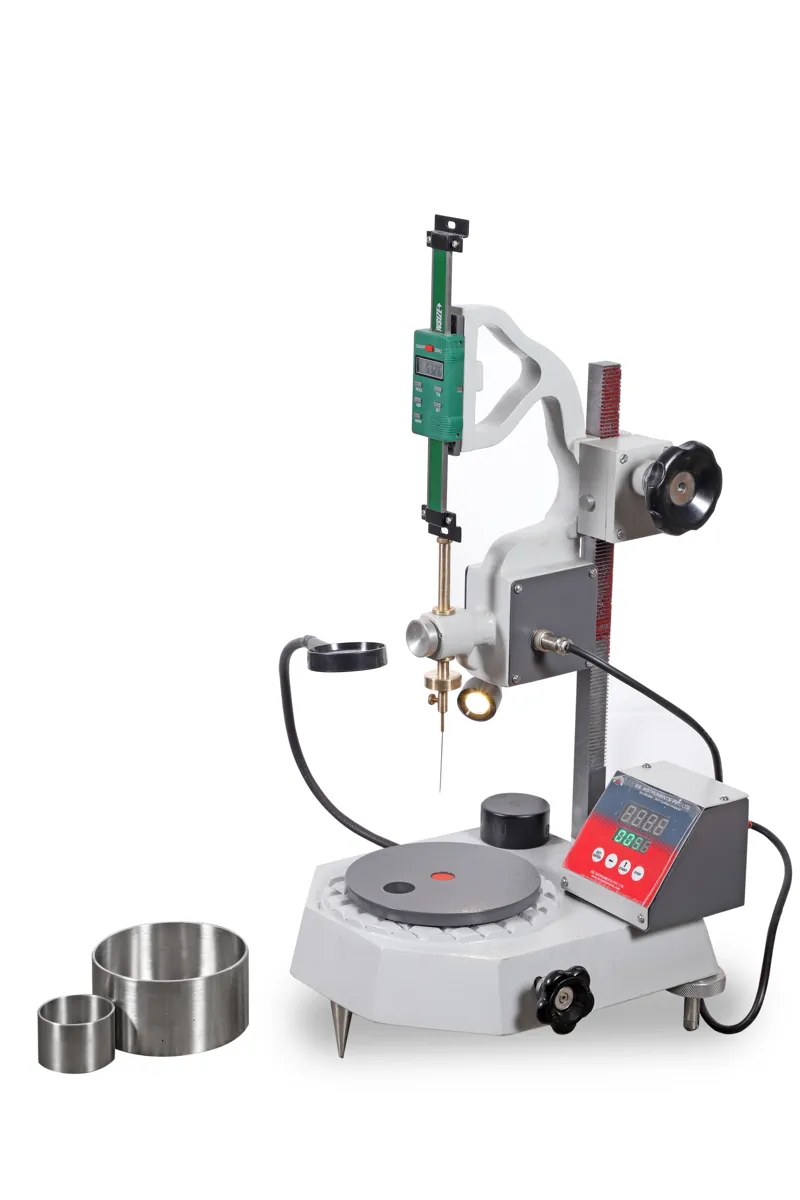

DIGITAL PENETROMETER - DIGITAL TIMER & DIGITAL PENETRATION INDICATOR - GEARED HEIGHT ADJUSTMENT -

Model No: TM-044DTDPGB

As per IP 376, ASTM D217, IS 1448 (P-60), IP 50. In addition to regular features, this model is Fitted with a Digital direct reading Penetration indicator and a Micrometer differential gearing system for fine movement of penetration Cone. Complete with Automatic Timer and Penetration cup. Water bath to condition the sample is available at extra cost.

Compliance with following International Standards:

IP 376, ASTM D217, IS 1448 (P-60), IP 50


Silent Features:

  1. Compact design and rugged construction ensures long service life & facilitates transport for field applications.
  2. Powder coated body parts for aesthetical outer appearance
  3. Sturdy cast iron base provides excellent support.
  4. Built‑in spirit level and leveling screws ensure proper alignment during testing.
  5. Supplied with Digital Penetration indicator to display penetration value and Digital time controller


Brief construction details:

  1. The apparatus consists of a cast aluminum base with an iron stand, on which moves an aluminum arm.
  2. A Digital Penetration indicator fixed on this arm and a brass chromium plated rod slide through the lower portion of the arm.
  3. A Hollow Brass cone with plunger is fitted to this rod as per the test application.
  4. Rack, pinion and pointer assembly is provided for fine adjustment of Penetration Arm / Head
  5. The base of the instrument is also user adjustable. It can also be lifted up / down with the jack provided at the bottom.
  6. The automatic digital timer and electrical arrangement, which on push of a button, allows the plunger rod to fall freely for 5 seconds and clamps it automatically after 5 seconds.
  7. The penetration value is measured and indicated on Digital Vertical Ruler.
  8. The penetration time is controlled and indicated on Digital Timer Panel with least count of 0.1 second.
  9. Digital Linear Scale measures the penetration distance in 0.01 mm accuracy.
  10. Operates on 230 Volt, 50 Hz, Single Phase, AC Supply


 Supplied complete with following Accessories:

  1. Digital time controller with auto magnetic clutch release mechanism on push of a button. Having timing range 0‑99 minutes (No need of stop watch)   1 No.
  2. Digital Penetration indicator with 0.01 mm accuracy      1 No.
  3. Sample container of 76.5mm dia x 63.5mm height  1 No.
  4. Magnetic coil for automatic controller            1 No.


Optional Accessories At Extra Cost

  1. Bath for Penetration test with heating only :
  2. Bath for Penetration test with heating and cooling system :

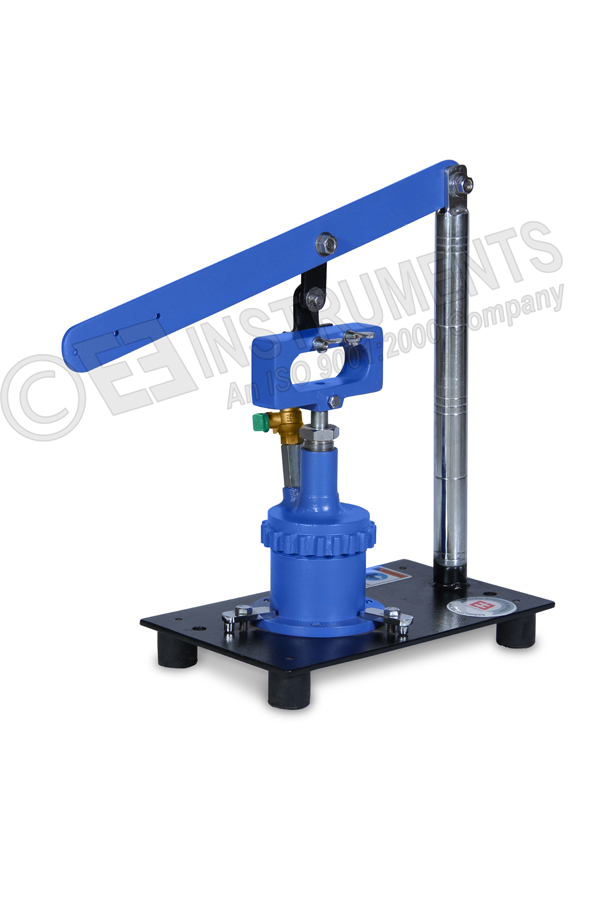

  3. Grease Worker Hand operated :
  4. Grease Worker Hand operated with big Handle (for mechanical advantage)
  5. Grease Worker Electrically operated with single worker with electronic digital counter
  6. Grease Worker Electrically operated with Double worker with electronic digital counter
  7. Grease Cutter as per IP‑50, ASTM D 217
  8. Quarter scale cone with shaft as per IP‑310/75 & ASTM D 1403
  9. Half scale cone with shaft as per IP‑310/75 & ASTM D 1403
  10. Half Scale Grease Worker as per ASTM D 1403
  11. Penetration solid aluminum cone as per ASTM D 217
Overall Dimensions in Inches (L x W x H) 10 x 12 x 22.5
