STANDARD PENETROMETER FOR BITUMEN - AUTOMATIC DIGITAL TIMER - BASIC MODEL - DIAL GAUGE

STANDARD PENETROMETER FOR BITUMEN - AUTOMATIC DIGITAL TIMER - BASIC MODEL - DIAL GAUGE

Model Number : TM-044ATB

None


Compliance Standards

IS 1203, IS 1448. ASTM D5


Details

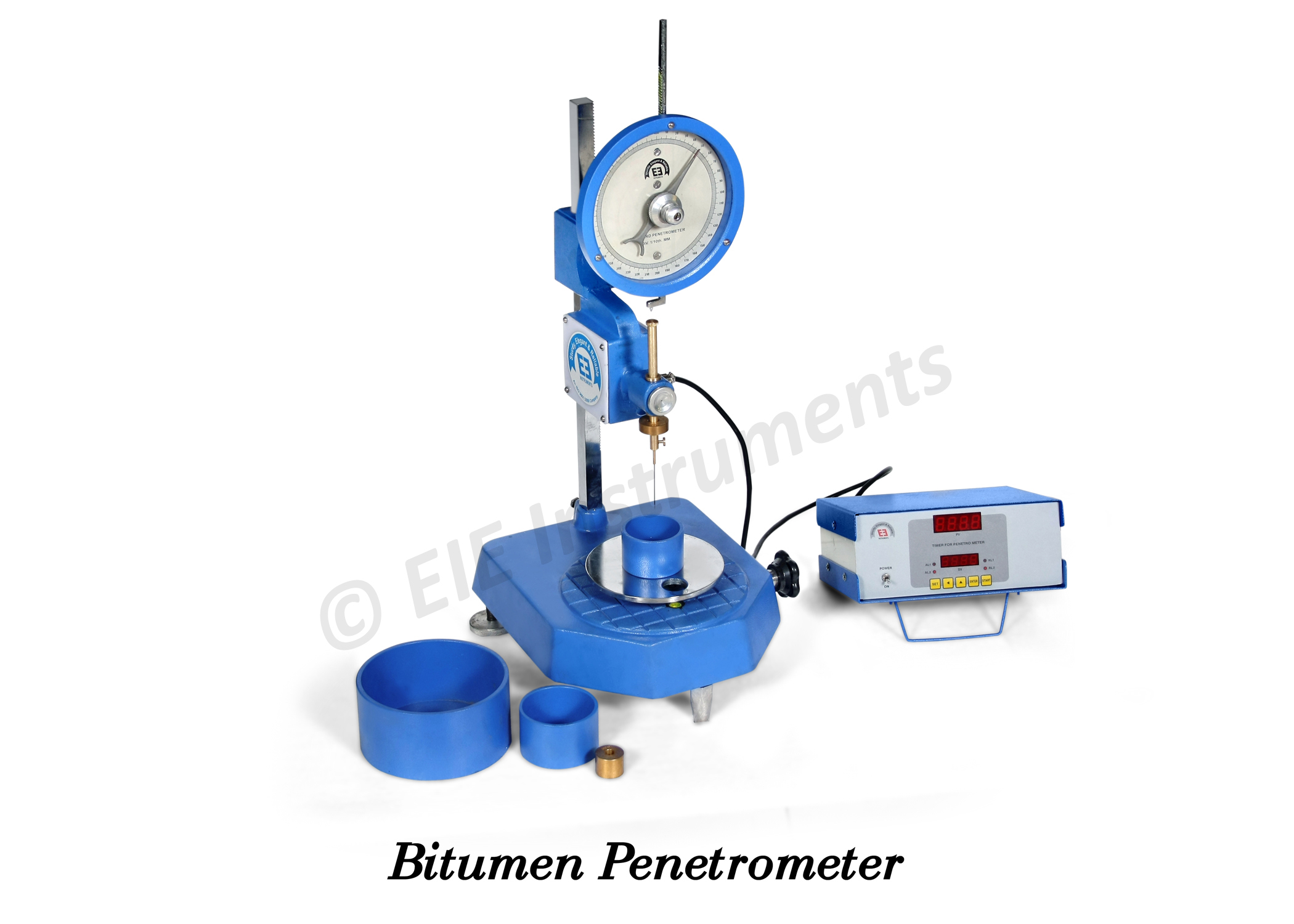

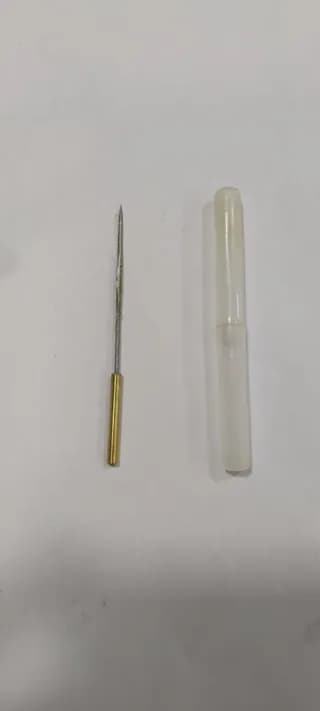

The apparatus consist of a cast aluminum base with an iron stand on which moves an aluminum arm. A 6" dial is fixed on this arm and a brass chromium plated rod slide through the lower portion of the arm. A needle with weights is fitted to this rod. The dial is graduated from 0‑400 in one tenth millimeter sub division. Supplied complete with adjustable needle holder, penetration needle sample container, transfer dish and weight of 50 gms. With automatic DIGITAL timer with electrical arrangement.


Optional Accessories at Extra cost


  1. Low Temp.waterbath to maintain 25 deg C
  2. Digital readout of Penetration Value (In stead of Analog Dial Gauge)

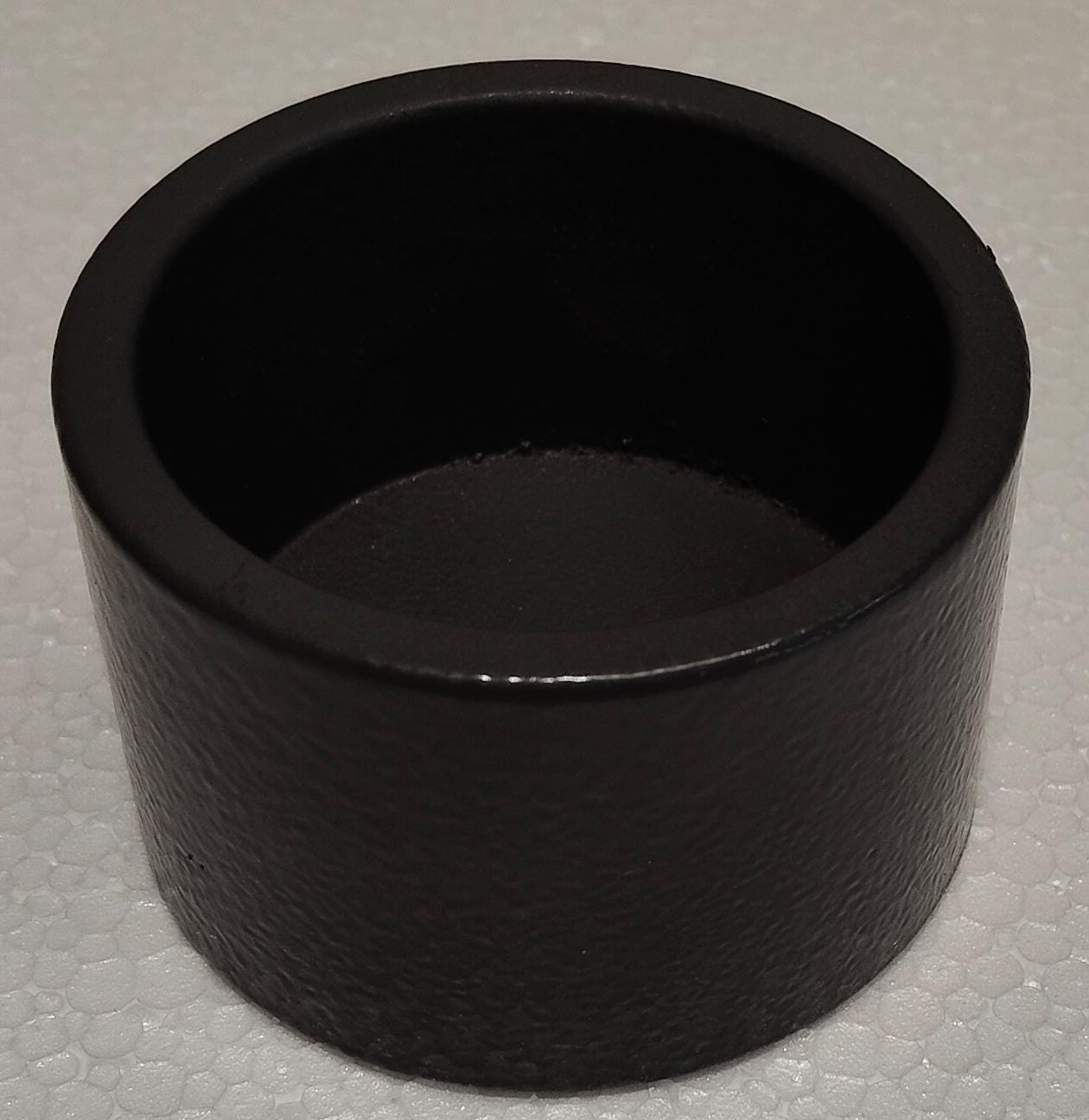

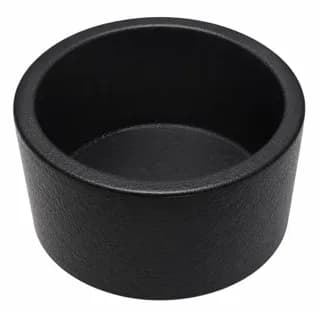

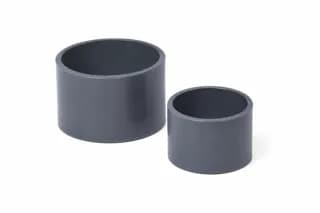

  3. Penetration cup 55 mm dia X 70 mm depth
  4. Penetration cup 70 mm dia X 45 mm depth
  5. Thermometer ASTM 17C (+19 to 27 °C)

Overall Dimensions in Inches (L x W x H)

10 x 12 x 22.5

Weight (kg)

6
