LE-CHATLIER MOULD - AS PER IS - SET OF SIX

Compliance Standards:

IS : 269, 712, 5514, 1727, 2645, 4031 (Part 3), 6932 (Part-IX)

BS : 890, 915, 1370, 4027, 4226 & 4248

EN 196-3

Details of apparatus:

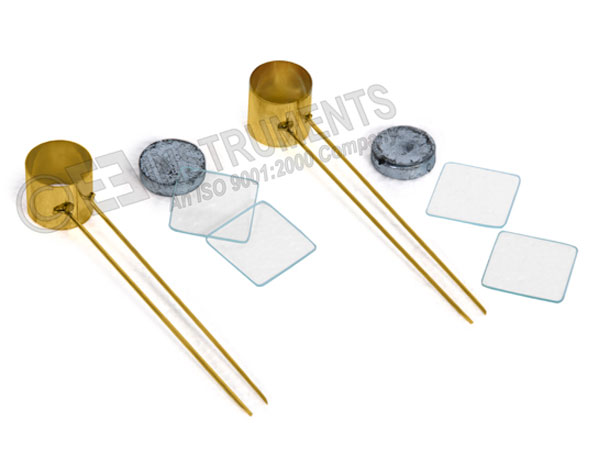

The apparatus consist of a small split cylinder of spring brass metal of 0.5 mm thickness forming a mould of 30 mm internal diameter and 30 mm high. On either side of the split, two indicators are brazed suitably with pointed ends made of 2 mm diameter brass wire in such a way that the distance of these ends to the centre of the cylinder is 165 mm.

Supplied complete with two glass plates and lead weight. Set of Six.

Additional Accessories required for the test (available at extra cost)

1. Waterbath with stand to keep Le-Chatlier Moulds
2. Gauging Trowel
3. Electronic Weighing Balance 1 kg X 0.01 gm
4. Digital Vernier Caliper 0-150mm X 0.02 mm
