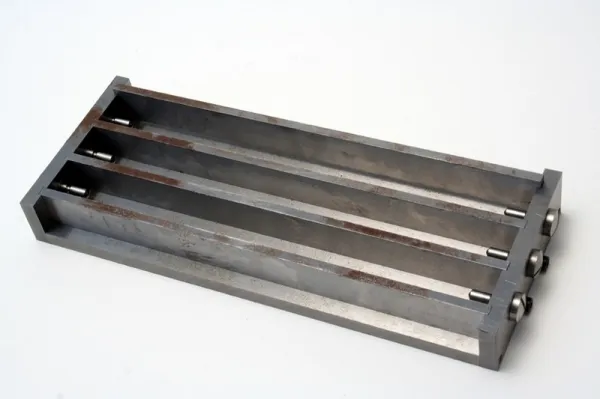

SHRINKAGE BAR MOULD - 25 X 25 X 282 MM - THREE MOULD COMPARTMENT

SHRINKAGE BAR MOULD - 25 X 25 X 282 MM - THREE MOULD COMPARTMENT

Model No: None

Supplied with 3 pair of smooth reference Point Pins, as per IS:IS:10086, IS: 4031, ASTM C 151 . Effective Gauge Length 250mm ± 2mm, Three Mould compartment

Compliance Standards

IS 4031, IS 10086, ASTM C 227, BS 1881




Applications

Shrinkage Bar Mould is used for casting specimens of cement & aggregate combinations for measuring the potential expansive alkali reactivity.



Details


  • Made of Mild steel Material
  • Has accurately machined faces
  • Tight fittings and firmly held together when assembled
  • 25mm x 25mm x 282mm Effective gauge length (250 mm effective length is the distance between two inner most reference points available within the mould.)
  • Three compartments assembled on angle base plate.
  • Supplied complete with base plate and stainless steel smooth referenced points
Overall Dimensions in Inches (L x W x H) 13 X 5 X 2
