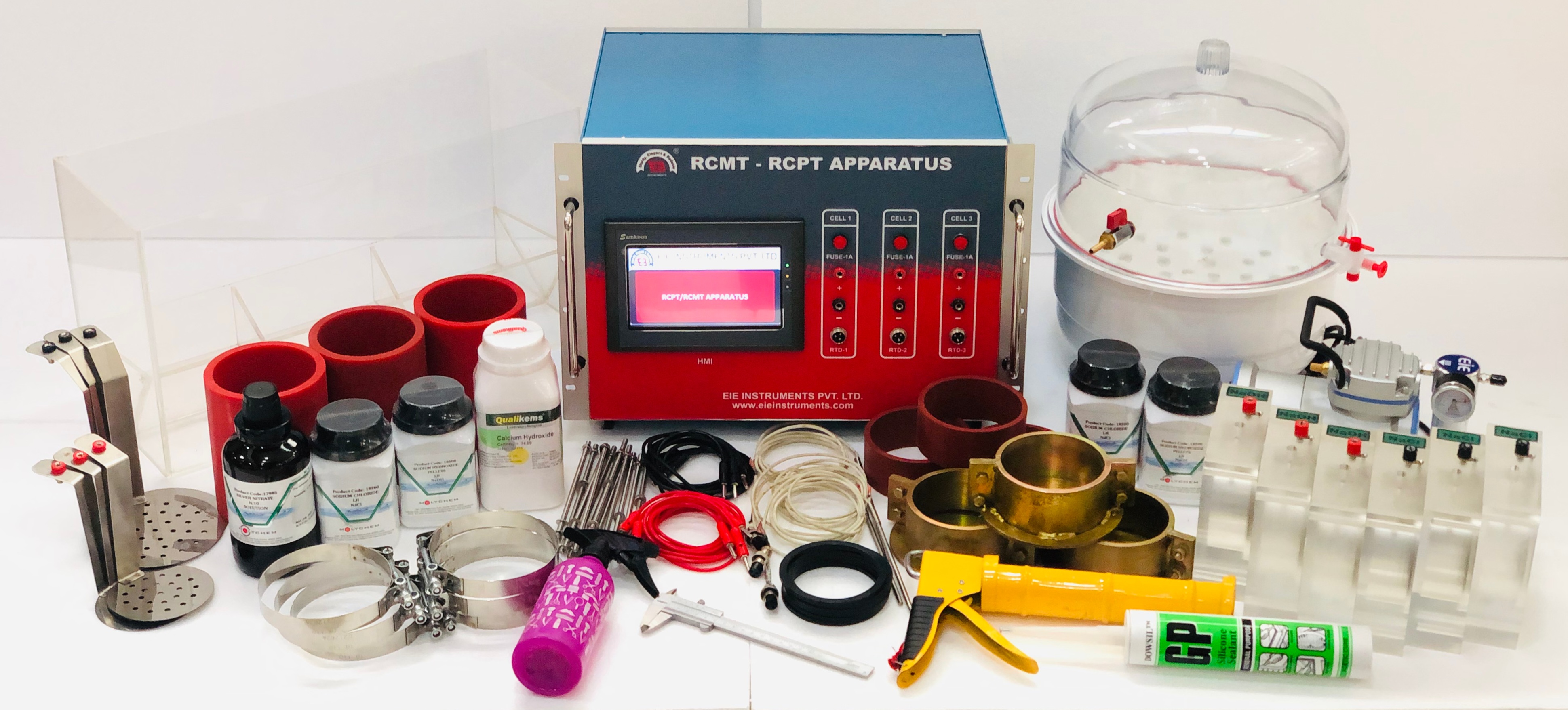

RCPT / RCMT COMBINED APPARATUS - 3 CELL - WITH DAQ SYSTEM & PC INTERFACE-

The Scope of supply:

RCPT /RCMT Apparatus with DAQ System and accessories supplied:

1. The instrument has 60 volt supply individually
2. 7" touchscreen HMI for voltage, current and temperature
3. Built in data acquisition system with PC interface software
4. Three Cell RCPT apparatus, current of three cells & temperature with PC interface software
5. Acrylic Cells Machined as per ASTM C 1202 to hold the concrete specimens of 100 mm diameter -3 sets
6. Rubber elastomeric mould 100 mm ID x 50 mm Height-3 nos
7. PT 100 RTD sensor for temperature measurement 3 Nos
8. Flexible cable 1 meter long with banana connectors- Red -3 Nos
9. Flexible cable 1 meter long with banana connectors- Black -3 Nos
10. RS232- USB port interface cable - 1 No
11.  Software CD -1 No
12. Stainless Steel Bolts 12 Nos
13. Stainless steel washers 24 Nos
14. Stainless steel Nuts 24 nos
15. RTV sealant - 1 tube
16. GUN
17. RCPT mould MS-100 mm ID X 50 mm height 3 nos

 Consumables:

1. NaOH salt -500 gram-5 nos
2. NaCl salt – 500 gram-5 nos
3. AgNO3-500 ml-1 nos
4. CaOH2-500 gm - 5 nos

 3 channel RCMT Accessories

1. RCMT acrylic bath for 3 cell
2. Solid support for specimen
3. Neoprene Rubber moulds 3 Nos
4. SS Clamps 6 Nos
5. SS Cathode with Teflon bushes 3 Nos
6. SS Anode electrode 3 Nos
7. Vernier caliper-150 mm
8. Spray bottle
9. Software CD for 3 cell RCMT apparatus

Oil Free Vacuum Pump with for continuous operation and vacuum desiccators and other accessories are also the part of the standard supply
