ULTRASONIC PULSE VELOCITY TESTER-4600 - L-

Meets National And International Standards IS-13311 Part(1), BS-4408, BS-1881 & ASTM C-597

1. Non destructive Quality Assessment of in situ or precast concrete.
2. Crack & Void detection.
3. Determination of Homogeneity of concrete.
4. Elastic property measurement of concrete.

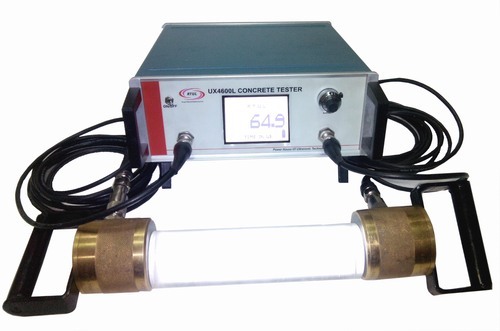

Portable Ultrasonic Concrete tester

1. Range :Upto 5 Meters in Concrete.
2. Accuracy : ± 100 nano seconds
3. Frequency response : 20 kHz to 500 kHz.
4. UCT is a fully portable instrument for assessing the quality of concrete in " in situ" or precast. It complies with the British Standard 1S-13311 Part(1), BS -4408 (Part V - 1974), BS-1181 and ASTM C-597. It is designed with field conditions in mind andis very simple to operate. Its accuracy and stability are unmatched. It generates low frequency pulses and measures the time of flight in the material. The time is displayed by 5 digit display. The time of flight and hence the velocity is related to the mechanical quality of concrete. The majority of concrete testing requires transducers with frequency of 50 to 100 kHz. However higher frequencies are preferred for testing small specimens and achieving better timing accuracies and lower frequencies for longer structures/higher penetration. Wide range of transducers are offered with UCT. The high quality of transducers has been exploited to the fullest extent and the accuracy of the measurement is improved over the entire range to 100 nano seconds.

SPECIFICATIONS.

1. Display: 128 x 64 Graphic LCD
2. Zero correction: Through Multi turn Potentiometer
3. Battery indication : Level Bar LCD display .
4. Dimensions (mm): 310x225x105
5. weight (kg) including batteries : 3.2

SPECIFICATIONS

1. Test Mode : Through Transmission mode.
2. Range : ± 0.1 4 sec.
3. Measurement Units : Time.
4. Resolution : ± 0.1 μ sec.
5. Calibrated Accuracy : ± 0.1 μ sec.
6. Transducer : Contact Type.
7. Operating Temperature :0 to 50 C.
8. Power : 7.2V DC.
9. Display Response time : Instantaneous.
10. Testing range: Upto 5 meters & 5 meters and above with amplifier and suitable probes.

STANDARD ACCESSORIES:

1. 1 set of 7.2 volt NiCd Cells.
2. Probe Cables : 2 Nos. (4m each).
3. Transducers : 2 Nos. (2” diameter, 60 kHz).
4. Calibration block along with verification block as per IS 516 (2 Calibration blocks with Sr No engraved) with NABL traceability certificate
5. Cover/Bag

OPTIONAL TRANSDUCERS:

Available in 1” and 2” sizes & frequency range 25 - 250 KHz (UHF/BNC connectors)
