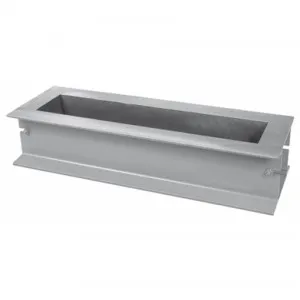

BEAM MOULD - 15 X 15 X 60 CM - CAST IRON

BEAM MOULD - 15 X 15 X 60 CM - CAST IRON

Model No: TM-114-3

Made of cast iron / mild steel. The mould are made of 4 plates assembled together. Each mould is supplied complete with base plate. Faces are machined flat to ± 0.2mm. And finished in size to 0.2mm.

Compliance Standards

IS 10080, ASTM C31, C78, C192, C293; AASHTO T23, T97, T126, T177


Details

  1. Made of Cast Iron Material
  2. Heavy Duty
  3. The moulds are made of 4 plates assembled together.
  4. Thickness of plates : 10-12 mm
  5. Weight of mould      : 35 kg approximately
  6. Complete with base plate
  7. Faces are machined flat to ± 0.2 mm and finished in size to 0.2 mm
  8. Durable, Corrosion resistant and easy to clean.


Note

Please apply grease after each use to maintain the rust proof surface.
