Job Application
Compliance Standards
BIS 4984
Details

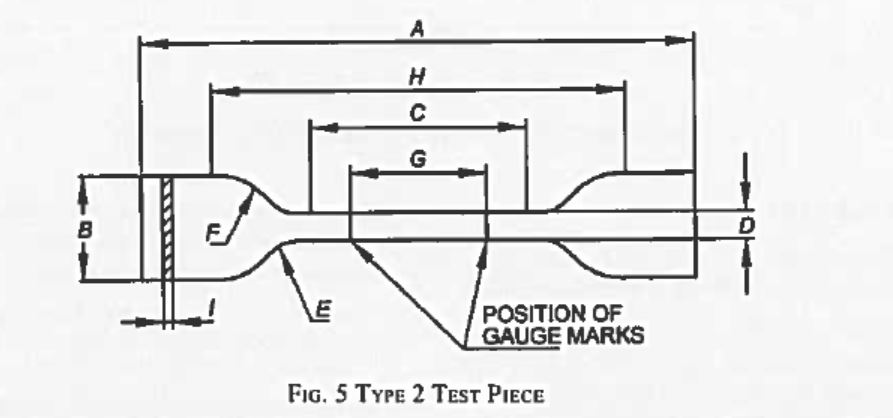

Cutting die to prepare the sample for Tensile test
|
Length overall, mm |
115 mm |
|
Width of ends |
25 ± 1 mm |
|
Length of narrow section |
33 ± 2 mm |
|
Width of narrow section |
06 ± 0.4 mm |
|
Small radius |
14 ± 1 mm |
|
Large radius |
25 ± 2 mm |
|
Gauge length |
25 ± 1 mm |
|
Distance between grips |
80 ± 5 mm |
|
Thickness |
7 mm |
