IS 10810 (PART 7)-50 MM LENGTH-SPECIMEN CUTTING DIE

IS 10810 (PART 7)-50 MM LENGTH-SPECIMEN CUTTING DIE

None


Compliance Standards

IS 10810 (Part - 7)


Applications

To prepare the test specimens for thermoplastic and elastomeric insulation and sheath of electric cables.

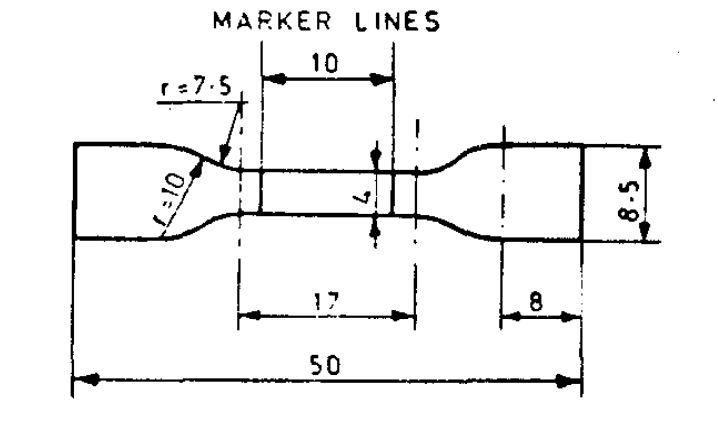

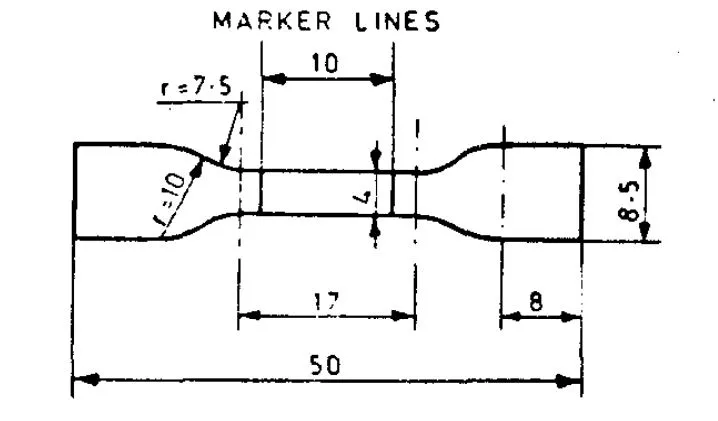

Overall Length

50 mm

Overall Width

8.5 mm

Gauge length

10 mm

Gauge Width

4 mm

Radius of filet

7.5 mm

Outer radius

10 mm
