Job Application
Compliance Standards
ISO 37, IS 15058
Applications
To prepare tensile test specimen
Notes
(1) No warranty is applicable in case of punch die as smooth & uninterrupted operation of dies depends on various other governing factors such as Proper Alignment of dies, Bottom Support, Technical skills of the operator etc.
(2) This is purely visual and skill based work. Any random un-skilled operator can damage the die and EIE shall not be held responsible for the same.
(3) Use of Saag Wood / Teak Wood as bottom support to withstand the actual force of press after the specimen has been cut is highly recommend. Die shall not be used without reliable Saag Wood / Teak Wood as bottom support.
|

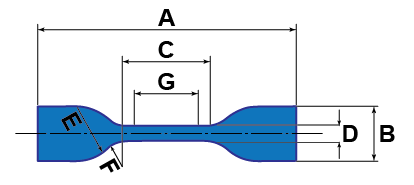

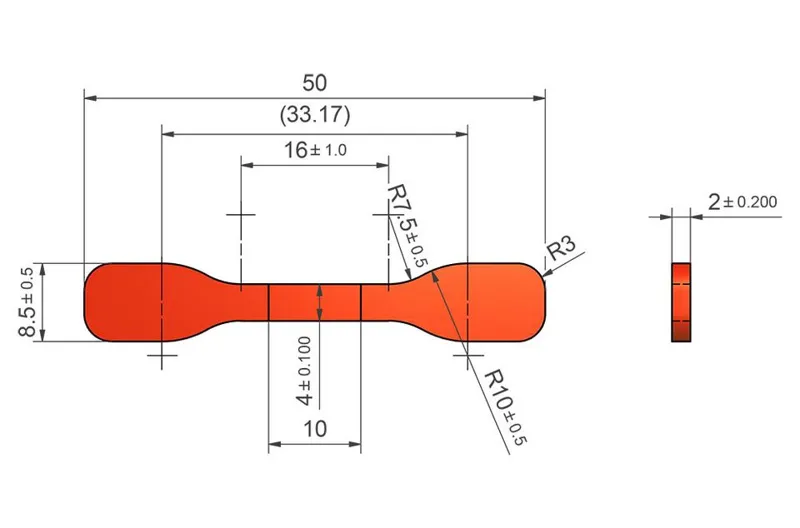

A, Overall length (minimum) |
50 mm |
|
B, Width of Ends |
8.5 ± 0.5 mm |
|
C, Length of narrow portion |
16 ± 1 mm |
|
D, Width of narrow portion |
4 ± 0.1 mm |
|
E, Transition radius outside |
7.5 ± 0.5 mm |
|
F, Transition radius inside |
10 ± 0.5 mm |
|
G, Gauge Length (mm) |
10 ± 0.5 mm |
|
Thickness (mm) |
2 mm ± 0.2 mm |
|
Material |
High carbon high chrome (HCHC) |
|
Maximum cutting depth |
8 mm |
