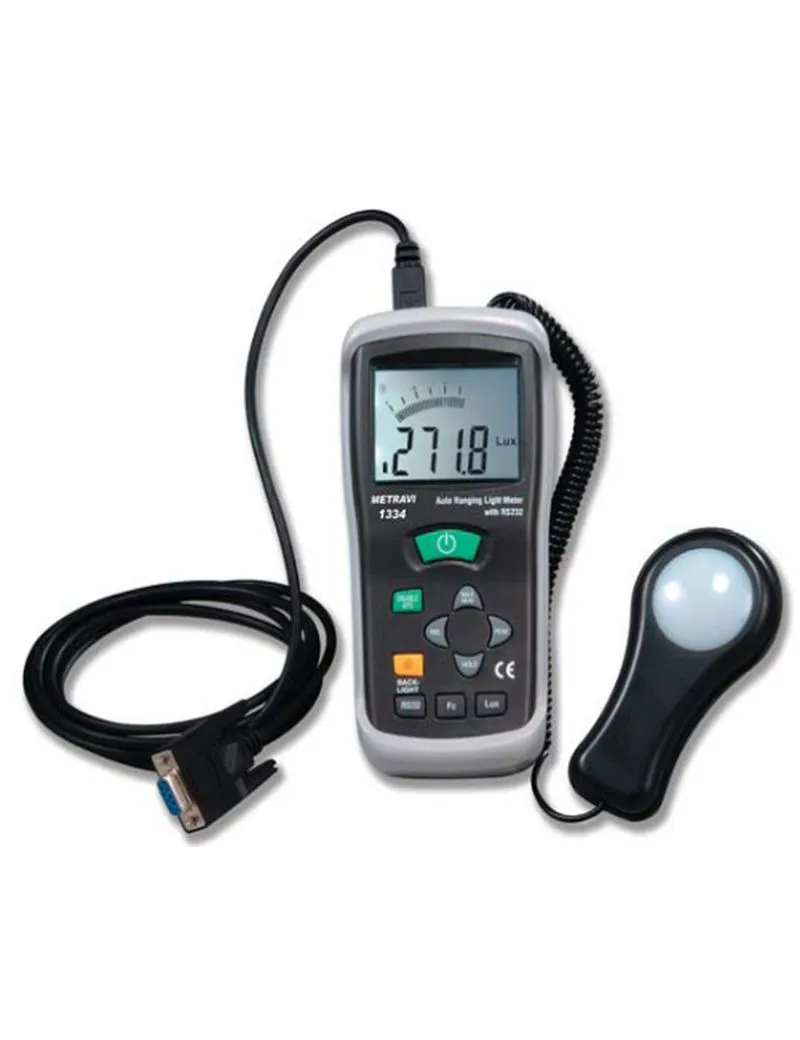

DIGITAL LUX METER-(1334)-(WTIH USB PC INTERFACE)

DIGITAL LUX METER-(1334)-(WTIH USB PC INTERFACE)

Model Number : METRAVI-1334

None


Introduction:

  1. The digital luminescence meter is a precision instrument used to measure luminescence (Lux, Foot-candle) in the field.
  2. It does meet and comply with CIE Photopic spectral response.
  3. Fully cosine corrected for the angular incidence of light.
  4. Compact, tough and easy to handle owing to its construction.
  5. Stable light sensitive component, Long-life silicon photo-diode and spectral response filter

Salient Features:

  1. Data Hold facility to freeze the displayed data
  2. Auto ranging
  3. Annunciator display and automatic zero facility
  4. With USB Interface for PC connectivity
  5. The correction factor need not be manually calculated
  6. for non standard light sources
  7. Short rise and fall times
  8. Peak Hold function for tracing the peak signal of light pulse
  9. Measures in both Lux and FC scales
  10. Meter corrected for spectral relative efficiency
  11. Auto Power off facility
  12. Max and Min recording Facility
  13. Relative measuring Facility
  14. Displays Both in Lux and Foot-candle

Display

Digital LCD Display with high speed 40 segment bar graph

Measuring Range

400 Lux, 4000 Lux, 40 KLux, 400 KLux

40 FC, 400 FC, 4000 FC, 40 KFC

Over range display

LCD Will show "OL" Display

Spectral response

CIE Photopic (CIE human eye response curve)

Spectral accuracy

CIE Vλ, function f1⩽ 6%

Cosine Response

f2'⩽ 2%

Accuracy

±5% rgd ±10d (<10,000 lux)

±10% rgd ±10d (>10,000 lux)

Repeatability

± 3%

Sampling Rate

1.3 time/sec of analog bar graph indication

1.3 times/sec digital display

Photo Detector

Silicon photo diode and spectral response filter

Photo Source

1 Piece, 9 Volts Battery

Photo Detector Lead Length

150 cm

Accessories

Carry case, Instruction manual, Battery

Weight

390 Grams
