Job Application
Application
- Monitoring blue light radiation hazards in welding
- UV sterilization
- Graphic arts
- Photochemical matching
- UV EPROM erasure
- Photoresist exposure
- Weathering \"degradation studies\"
- UV sterilization Virology
- Microbial genetics
- DNA research
- Biologic hoods
Details

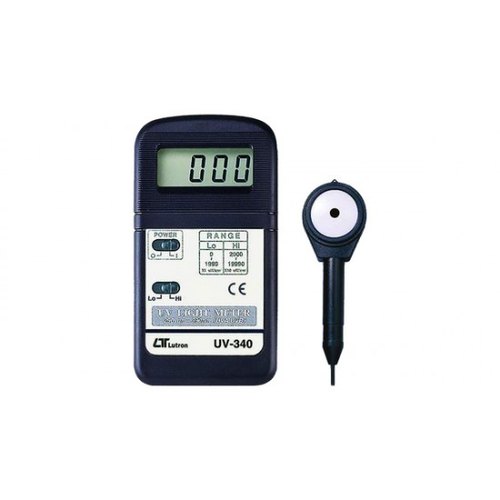

- Professional, high quality UV meter
- High, Low measurement range
- Ultra-violet irradiance measurement for UVA & UVB
- Exclusive UV sensor structure
- LSI circuit provides high reliability and durability
- Separate UV LIGBT probe allows user to measure the UV light at an optimum position
- LCD display, easy readout
- Includes : Instruction Manual, UV Sensor Probe
- Optional Accessories (Not Included) : Soft carrying case, CA-52A,CA-03
|
Model No |
UV-340A |
|
Operating Temprature |
0 to 50 °C |
|
Display |
13 mm LCD Display |
|
Measuring Range |
1999-19990 Lux |
|
Resolution |
1-10 Lux |
|
Accuracy |
±4%+2d |
|
UV Sensor spectrum |
Band pass 290nm to 390nm |
|
Sampling Time |
1 Sec |
|
Power Supply |
9 V Battery Approx. DC 6 mA. |
|
Sensor |
The Exclusive UV Photo diode & UV Color Correction Filter |
|
Photo diode detector dimensions |
68 x 60 x 27 mm (L X W X H) |
|
Weight |
251 Grams |
|
Dimensions |
131 x 70 x 25 mm |
