BOMB CALORIMETER - MANUAL CALCULATION

Model No: EIE-220M

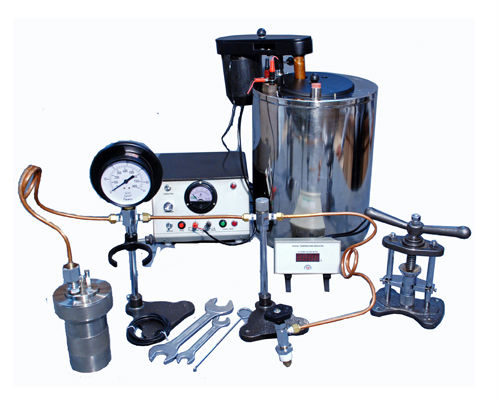

It is used for determination of calorific value of liquid & Solid fuels. The Instrument consists of a S.S. Bomb - Body made out of corrosion resisting stainless steel Rod Cap. 300 ml, Calorimeter vessel, outer Jacket with insulated Body, offset stirrer, S.S. Crucible, pellet press, ignition wire, pressure gauge, with flexible pipes.

More Information

Compliance Standards:

IS 1360 part II : 1970 As per IS:1448(Part 6) / IS:1350 (Part 2)

The system will consist of the following parts and accessories along with instruction manual.:

Calorimeter vessel with bomb support & insulating base - 01
Water Jacket - 01
Combined lid for calorimeter vessel & water jacket - 01
Stirrer - 01 set
Connecting lead for calorimeter bomb - 01 set
Fine adjustment valve with built in pressure gauge - 01
Connecting tube to connect bomb, pressure gauge and fine regulating valve - 01
Safety Relief Valve fitted on gas filling tube adapter - 01
Pellet Press - 01
Spanner for Oxygen tube connection - 01
Ignition Wire - Nichrome - 01 Roll of 5 meter
Cotton Thread - 01 Roll
Stand for Bomb Lid - 01
Hook for Lifting Bomb - 01
Crucible SS - 01
Gas Release Valve - 01
Bomb Firing Unit - 01 Set
Differential Type Digital Thermometer (resolution 0.01°C) complete with sensor - 01 No
O-ring for bomb & valve - 01 set each
Schrader Valve with Key - 01 each
Standard Benzoic Acid - 01 Bottle
Resolution of 0.001°C can be provided at extra cost of Rs.40,000.00

Pre-Installation Requirements for all Bomb Calorimeters to be arranged by you:

Digital Top Pan Balance (0.0001 gm.)
2 KVA UPS with Batteries (30 min backup).
RO (50 liter) approx.
Oxygen Cylinder 99.9% Purity (47L, minimum 70 kg/cm2 pressure).
Clean Dust Free Room, Solid vibration free working table away from windows, ovens and other heat generating source.
Any others consumable etc.
