BOMB CALORIMETER WITH AUTOMATIC CALCULATION, PRINTER, COMPUTER INTERFACE AND AUTO GAS FILLING UNIT

BOMB CALORIMETER WITH AUTOMATIC CALCULATION, PRINTER, COMPUTER INTERFACE AND AUTO GAS FILLING UNIT

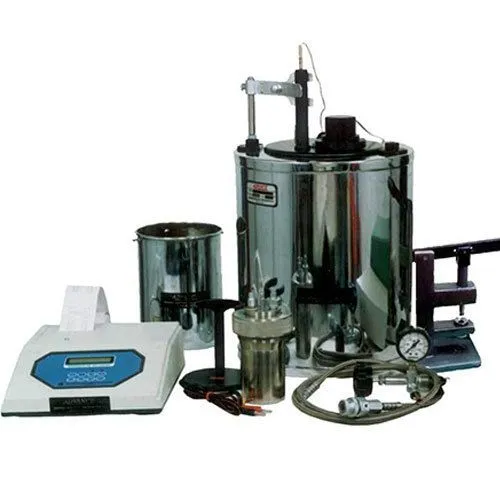

Model Number : EIE-220PPAG-TR



Auto Gas Ignition | Fully Automatic | Digital Precision

Overview

The EIE-220PPAG-TR Bomb Calorimeter is an advanced, fully automated system engineered for high-precision calorific value measurement. It eliminates manual intervention through automation of gas filling, sample ignition, temperature monitoring, data logging, and report generation. Designed to comply with modern laboratory demands, this model is ideal for energy research, food calorimetry, combustion studies, and quality assurance in fuels and materials testing.

Core Features & Benefits

🔄 Automation & Efficiency

  1. Auto Gas Control: Oxygen filling is handled automatically, minimizing manual handling and errors.
  2. Auto Ignition: Safe, reliable firing mechanism ensures consistent sample ignition.
  3. Automatic Calorific Value Calculation: Fully integrated digital calculation—no manual input required.
  4. PDF Report Output: Inbuilt thermal printer generates detailed PDF reports.
  5. Data Logging: Stores results with customizable fields (batch no., sample ID, operator name).

🎯 Accuracy & Reliability

  1. Thermistor Sensor: High-sensitivity temperature sensor (resolution: ±0.01°C).
  2. Precision Control Algorithm: Delivers reproducibility within ±0.2% and accuracy up to ±0.1%.
  3. Auto Calibration: System calibrates itself periodically for uncompromised accuracy.
  4. Measurement Range: 1 to 20,000 Cal/g—suitable for a broad array of substances.

🛡️ Safety Integration

  1. Pressure-rated Bomb Vessel: Built to withstand combustion pressure safely.
  2. Over-temperature Protection: Ensures safety of water jacket and surrounding components.
  3. Safety Interlocks: Electronic ignition and electrical safety protection for operator peace of mind.

đź§° Technical Specifications

Parameter/Specification

  1. Control Type : Microprocessor Based
  2. Display : Graphic LCD (128x64)
  3. Measurement Range : 1 – 20,000 Cal/g
  4. Resolution : 0.001°C
  5. Reproducibility : ±0.2%
  6. Calorific Value Accuracy : ±0.1%
  7. Sensor Type : Thermistor
  8. Printer : In-built Thermal Printer
  9. Data Logging : PDF Format Reports
  10. Auto Gas Filling : Yes
  11. Ignition System : Auto Ignition
  12. Calibration : Auto Calibration Enabled
  13. Stirring System : Automatic Uniform Stirrer
  14. Operating Temp. Range : 15°C – 35°C; RH ≤ 85% (non-condensing)
  15. Fuse wire error adjustable
  16. Cotton thread error adjustable
  17. Weight of sample settable
  18. Fuse Open detection
  19. With water equivalent test facility.

📦 Included Accessories

  1. Stainless Steel Bomb Vessel

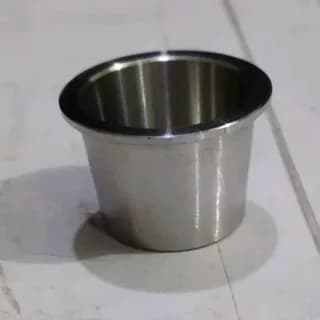

  2. Crucible, Firing Wire, Oxygen Filling Assembly
  3. Water Jacket with Circulator
  4. Power Cables, Software CD
  5. Operating Manual & Calibration Certificate

Advantages of Auto Gas Filling System

  1. Enhanced operator safety through pressure-controlled oxygen filling.
  2. Auto cut-off mechanism at set pressure prevents over-filling.
  3. Quick, effortless oxygen filling with a push-fit system, eliminating the need for Schrader Valves.
  4. Reduced manual intervention minimizes errors.
  5. Improved instrument accuracy and repeatability.
  6. Eco-friendly exhaust gas release system.
  7. Durable, maintenance-free design ensures smooth operation.

This advanced system is designed for precise, reliable, and safe calorimetric testing, adhering to the highest industry standards.


Pre-Installation Requirements for all Bomb Calorimeters to be arranged by the customer

  1.  Digital Top Pan Balance (0.0001 gm.) (Provided at extra cost)
  2. Desktop or Laptop
  3. 2 KVA UPS with Batteries (30 min backup). (Provided at extra cost)
  4. RO (50 liter) approximately
  5. Oxygen Cylinder 99.9% Purity (47L, minimum 70 kg/cm2 pressure)
  6. Clean Dust Free Room, Solid vibration free working table away from windows, ovens and other heat generating source.
  7. Any others consumable etc.


Consumables (Suggested to purchase in sufficient quantity)

  1. Cotton reel

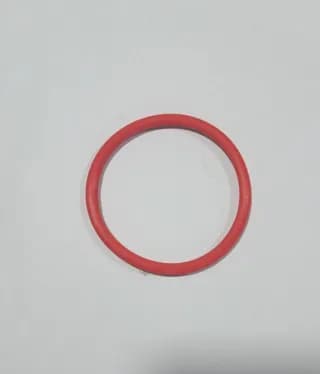

  2. Bomb 'O' ring

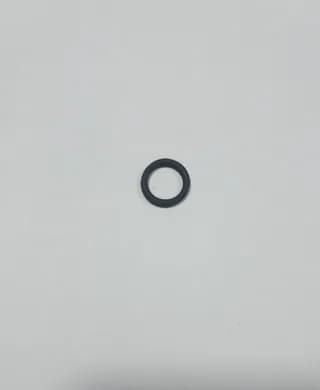

  3. Valve body 'O' ring
  4. Ignition wire

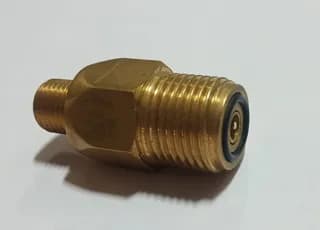

  5. Schrader valve


Click here for working video : https://www.youtube.com/watch?v=CxosLXJE3vs&t=149s
