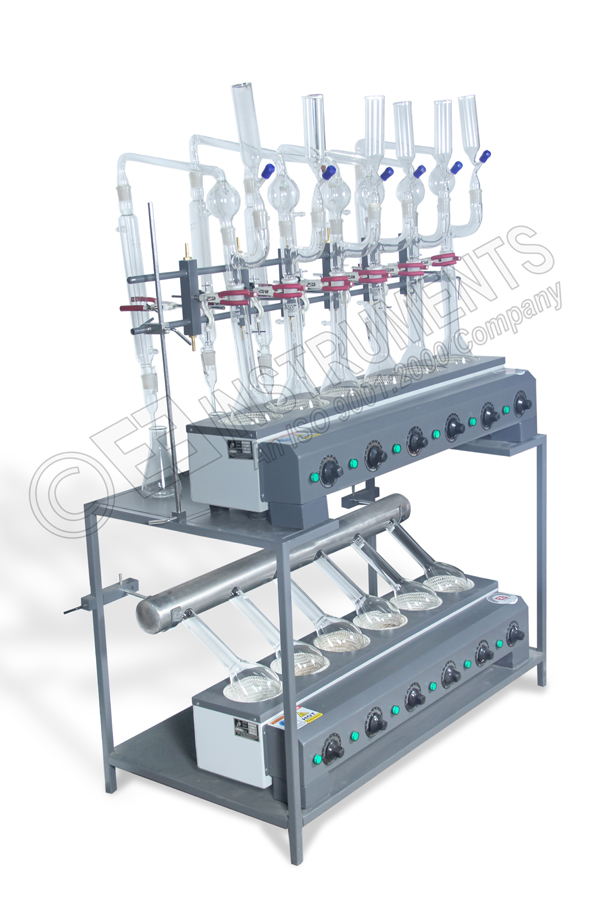

KJELDAHL DIGESTION & DISTILLATION COMBINED-WITH GLASS PLARTS-6 TEST POSITIONS

Brief Construction Details:

1. Electrically heated unit
2. Aesthetic exterior appearance
3. Powder coating in attractive shades.
4. Comprises of one single mild steel tubular stand with two shelves - one above the other.
5. A specially designed glass fume duct with B-24 Cone openings (suitable for flasks having 24/29 socket) having such provision so that no leakage of fumes takes place will be a part of standard supply.
6. One heater box having individual energy regulators for 500 watts heaters are supplied in digestion part at the lower side.
7. One heater box of having individual energy regulators for 500 watts heaters is supplied in distillation part at the upper side.
8. Distillation part is also provided with brass condenser rack with water circulation systems (Tubing & Pipes) and clamps.
9. The whole unit is operated on 220 volts AC mains.
10. Supplied complete with 06 Sets of glass parts and necessary rubber tubing of 3-4 meters length.
11. Also, supplied complete with Electrical Power cable for Heating Mantle units.

Following glass parts and accessories will be the part of standard supply

1) Distillation part

1. Kjeldahl distillation flask - 500 ml    - 06 Nos
2. Two Neck adopters               - 06 Nos
3. Dropping Funnel                 - 06 Nos
4. Splash Head Vertical             - 06 Nos
5. Liebig Condenser                - 06 Nos
6. Receiving Adopters               - 06 Nos
7. Conical Receiving flask - 500 ml     - 06 Nos
8. Clamp supports for Distillation unit   - 06 Nos

2) Digestion part

1. Kjeldahl digestion flask - 500 ml     - 06 Nos
2. Glass Fume Duct                - 01 Nos
3. Clamp supports for Digestion unit    - 02 Nos
