VACUUM PUMP-SINGLE STAGE-50 LTR / MIN.-

VACUUM PUMP-SINGLE STAGE-50 LTR / MIN.-

Model Number : HL-50-I

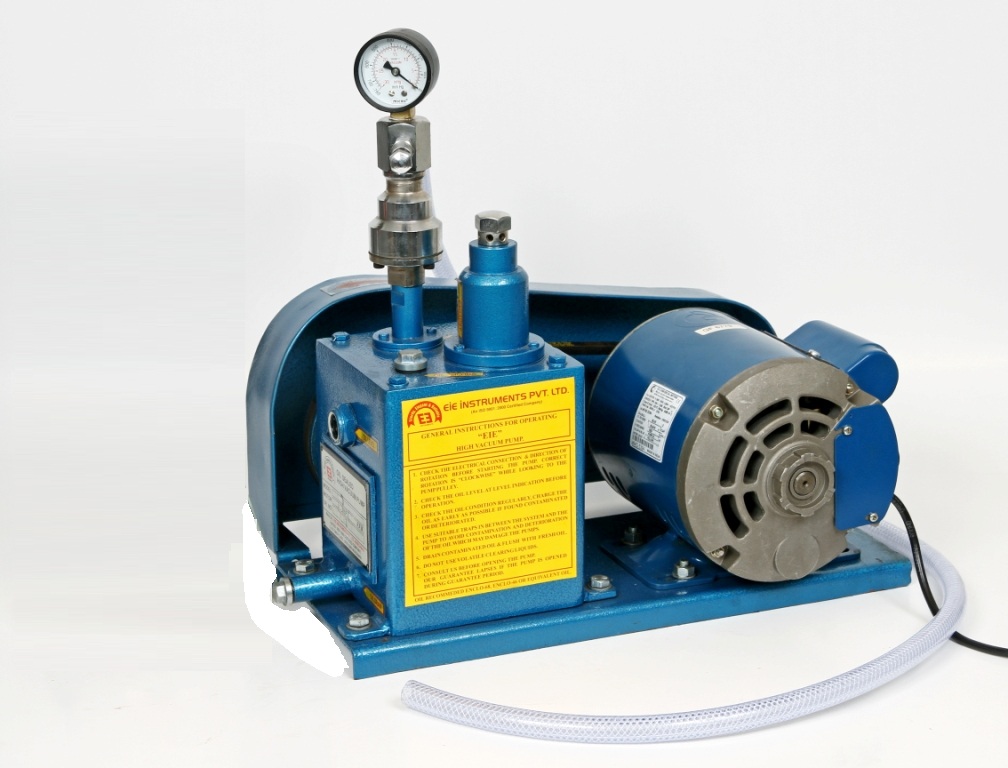

Complete with base ,motor pulley and belt. The pump mechanism is contained in a metal case with oil level and drain plug at base. Pump Speed 450 RPM, Ultimate vacuum 0.01 mm/Hg. Complete with non-return valve, belt guard and vacuum gauge with regulator. Working on 230 Volts AC single phase. Moisture Trap offered at extra cost is highly recommended to Prevents liquid from entering the pump.


Details

  • Complete with base, motor, pulley and belt.
  • The pump mechanism is contained in a metal case with oil level and drain plug at base.
  • Complete with non‑return valve, belt gauge and vacuum gauge with regulator.
  • Moisture Trap offered at extra cost is highly recommended to Prevents liquid from entering the pump.



Pump Speed

450 RPM

Ultimate vacuum

0.01 mm/Hg

Free air displacement

50 Ltr/min

Motor rating

0.25HP

Power Supply

240 Volts, single phase, AC Supply

Overall Dimensions in Inches (L x W x H)

18X11X17

Weight (Approx)

30 kg
