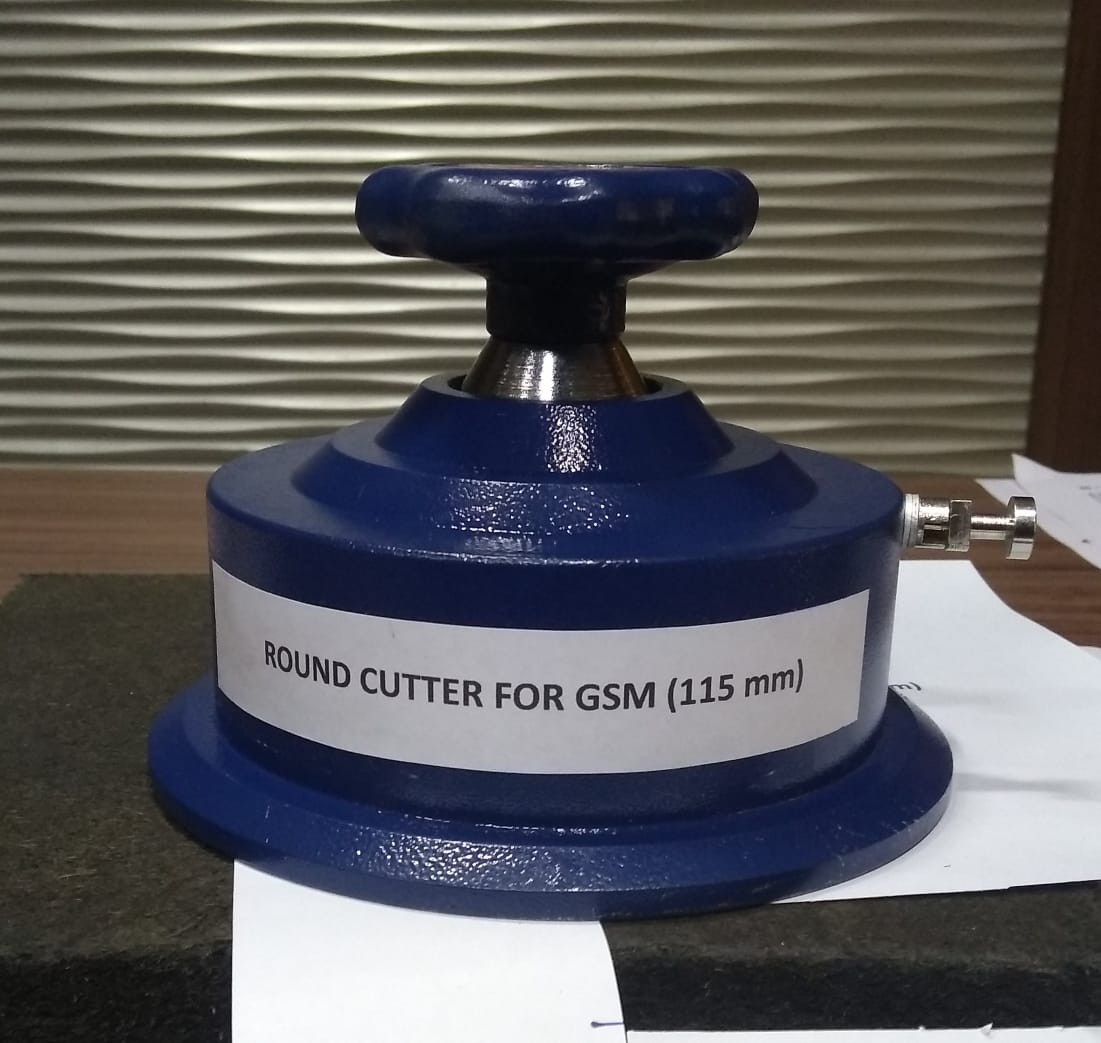

GSM ROUND CUTTER-115 MM DIA-ASTM D3786, ISO 3801

GSM ROUND CUTTER-115 MM DIA-ASTM D3786, ISO 3801

Model No: EIE-PT-106DIA115

Detailed specification as mention in following page.

Compliance standards:

ASTM D3776, ISO 3801, BS 2471, BS 3424


Applications:

Used for sample cutting in various industries such as acrylic sheets, aluminum and foils, bags and luggage of cotton, Pulp, Paper, Printing, Packaging and leather, belts, foot ware, paper industry.


Details:

The equipment consists of Sample cutter with safety catch lock and Long life cutting pads.

The Sample Cutter has 4 Nos. of German reversible blades. The blades are reversible in design i.e. If one side gets blunt due to continuous usage, the blades can be turned to the other side. In this way, all the four sides of the blades can be used. Each blade has numbered sides from 1-4 for convenience in changing the blades.



The unit is recommended for yield testing i.e. the determination of weight per unit area. The sample cutter cuts out rapidly and accurately circular specimen of 103 Cm2, which is exactly 1 / 100th of a square meter with the depth of up to 5 mm. The result is grams, multiplied by 100, gives the GSM (Grams per square meter) directly.

Sample Area 103 cm²
Sample Diameter 115 mm
Type of cut Standard
Blade holders 4 Nos. Stainless Steel
Blades Heavy duty Reversible Blades
No of Blades 4 Nos
Safety Lock Fine Brass Lock
Hand wheel (Handle) Special Bakelite Handle
Cutting pad New Rubber-Foam Pad
