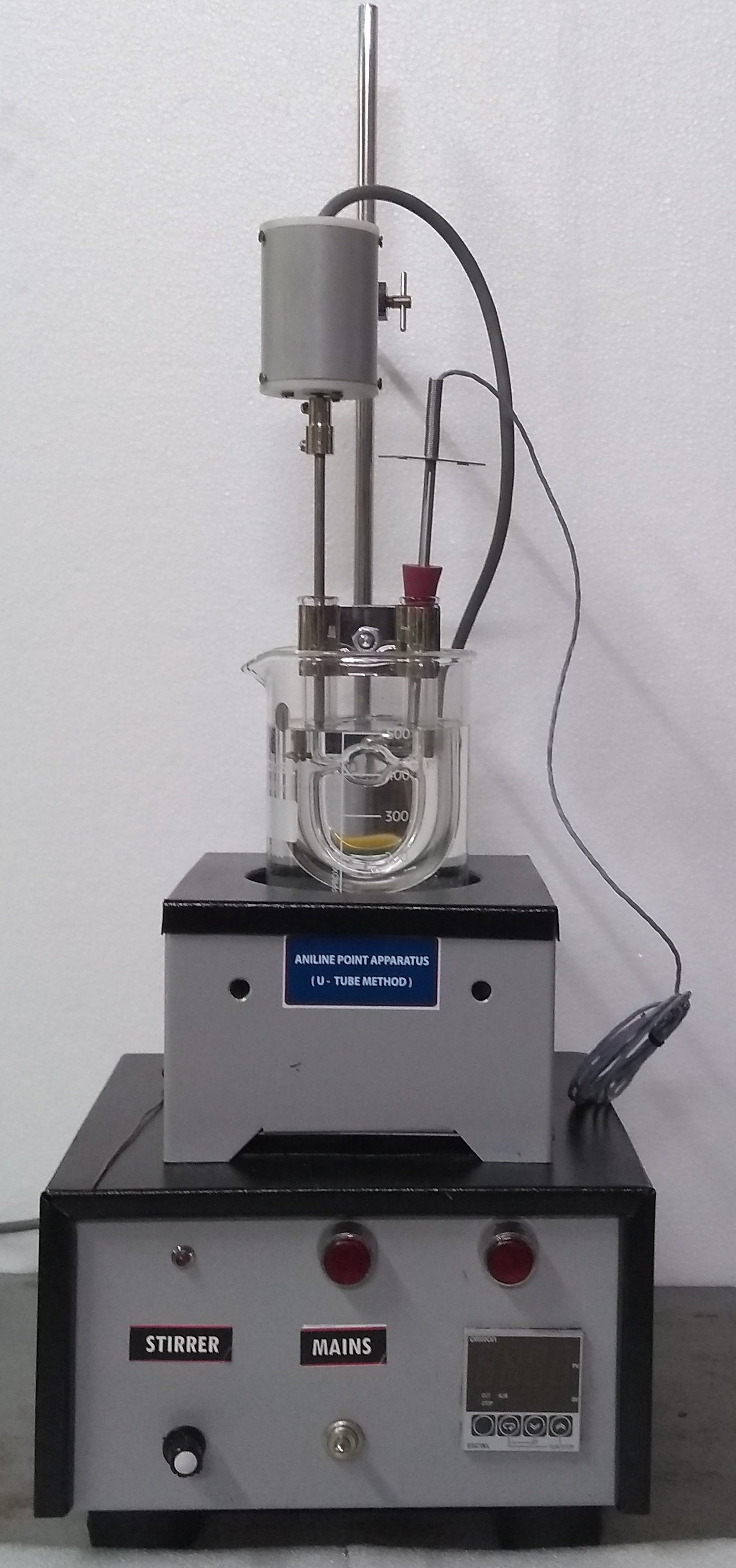

ANILINE POINT APPARATUS-METHOD D-WITH MOTORIZED STIRRER

ANILINE POINT APPARATUS-METHOD D-WITH MOTORIZED STIRRER

Model No: EIE-PTLT-150DDM

Scope:These test methods cover the determination of the aniline point of petroleum products and hydrocarbon solvents. Method D is for samples that may vaporize appreciably at the aniline point, particularly suitable where only small quantities of sample are available..Aniline point app. as per IP-2 method 'D' by U-tube method elect. heated with FHP stirrer but without IP or ASTM Grade thermometers. Spare U Tube available at extra cost

Compliance with following International Standards

ASTM D611, IP 2


Brief Construction Details

The complete assembly consists of following parts and accessories.


  1. Bulb of 1.5 ‑ 2.0 ml capacity, 3 mm internal diameter
  2. Blub made of heat resistant glass
  3. Electric heater device with motorized stirrer
  4. Test tube 22 mm Ø × 150 mm height
  5. Caps
  6. Support



Optional accessories at extra cost:

  1. Spare U‑Tube                        @ Rs 750
  2. IP 20C (‑38/42°C x 0.2C)     @ Rs 850
  3. IP 21C (25/105°C x 0.2C)     @ Rs 850
  4. IP 59C (90/170°C x 0.2C)     @ Rs 850

Overall Dimensions in Inches (L x W x H)

9.5 x 9 x 26

Weight (kg)

5.15
