CLEAVELAND FLASH POINT APPARATUS -WITH VOLTAGE VARRIER

CLEAVELAND FLASH POINT APPARATUS -WITH VOLTAGE VARRIER

Model Number : EIE-PTLT-102VV

This apparatus is used for determination of flash point and fire point of petroleum products open cup flash between 79°C - 400°C as per specification IP 36 and IS: 1448 (P: 69) 2019. COMBINED test system either test by Gas JET or by oil wick arrangement with Voltage Varrier (Copper Coil type) control. The apparatus consists of a cup, heating plate to specific dimension thermometer clip and test flame attachment with swivel joint for passing over test liquid surface in the prescribed manner, Heating is controlled by means of Voltage Varrier fitted to the apparatus. Suitable for operation on 220 Volts 50 cycles AC Circuits. Glass Thermometer IP 28C available at extra cost. Digital Temp.indicator can also be supplied at extra cost


Compliance with following International Standards:

IS:1448 (P-69)ASTM D92, IP ‑ 36/57, ISO 2592 : 2017

Purpose:

This apparatus is used for determination of Flash Point of petroleum products except fuel oil with open flash between 79°C - 400°C as per specification IP 36/57, IS 1448 (P:69) 2019 and ASTM‑D‑92.

Construction Details:

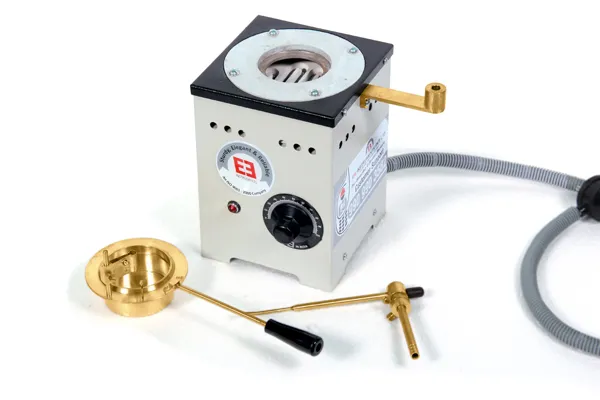

The apparatus consists of a cup heating plate to specific dimensions, thermometer clip and test flame applicator with swivel joint for passing over liquid surface in the prescribed manner. Heater is controlled by Voltage Varrier fitted to the apparatus. Suitable for operation on 220 Volts, 50 cycles, AC mains. The rate of rise of temp. can be controlled manually through Voltage Varrier.


Overall Dimensions in Inches (L x W x H)

10 x 13 x 11
