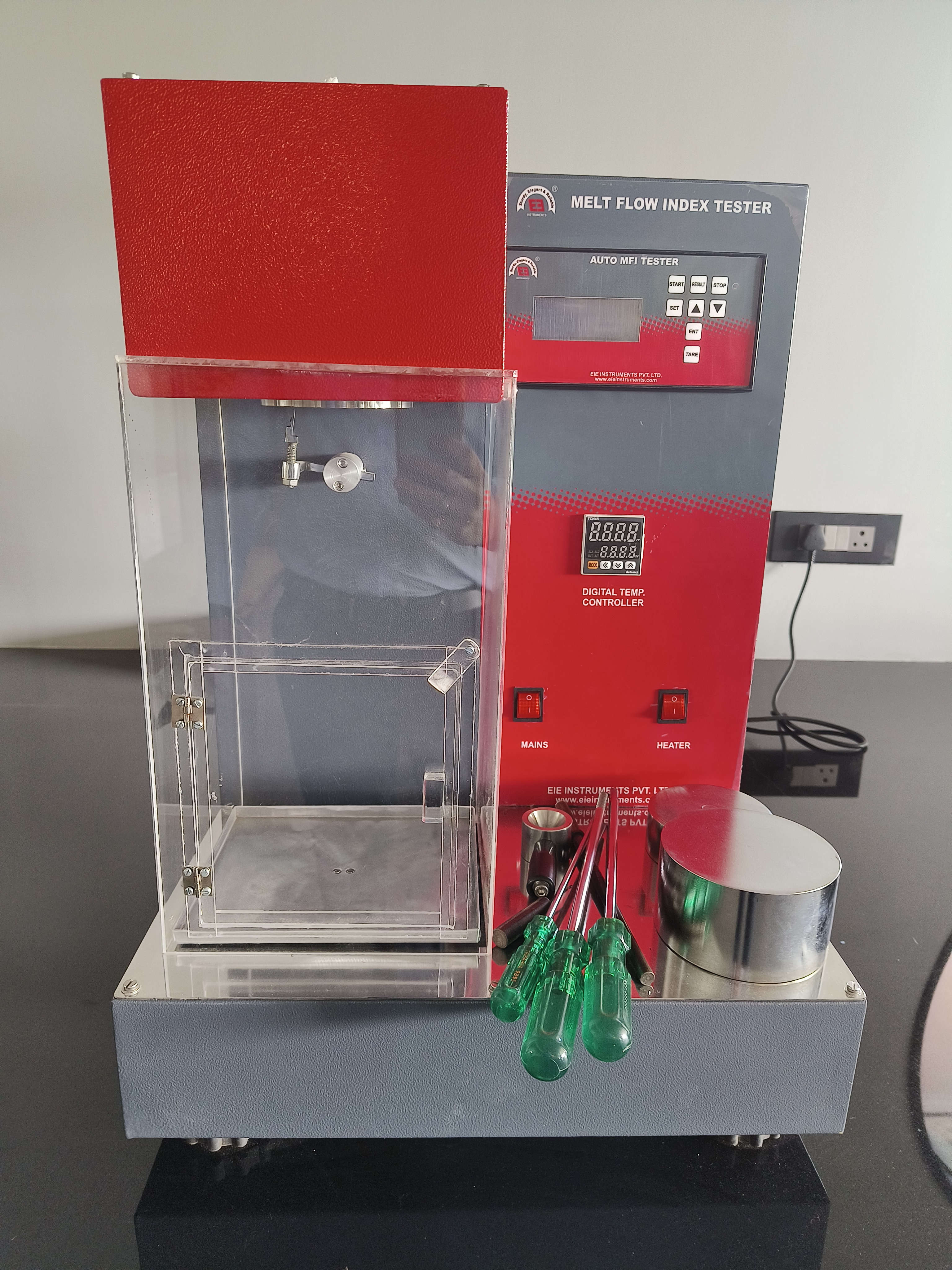

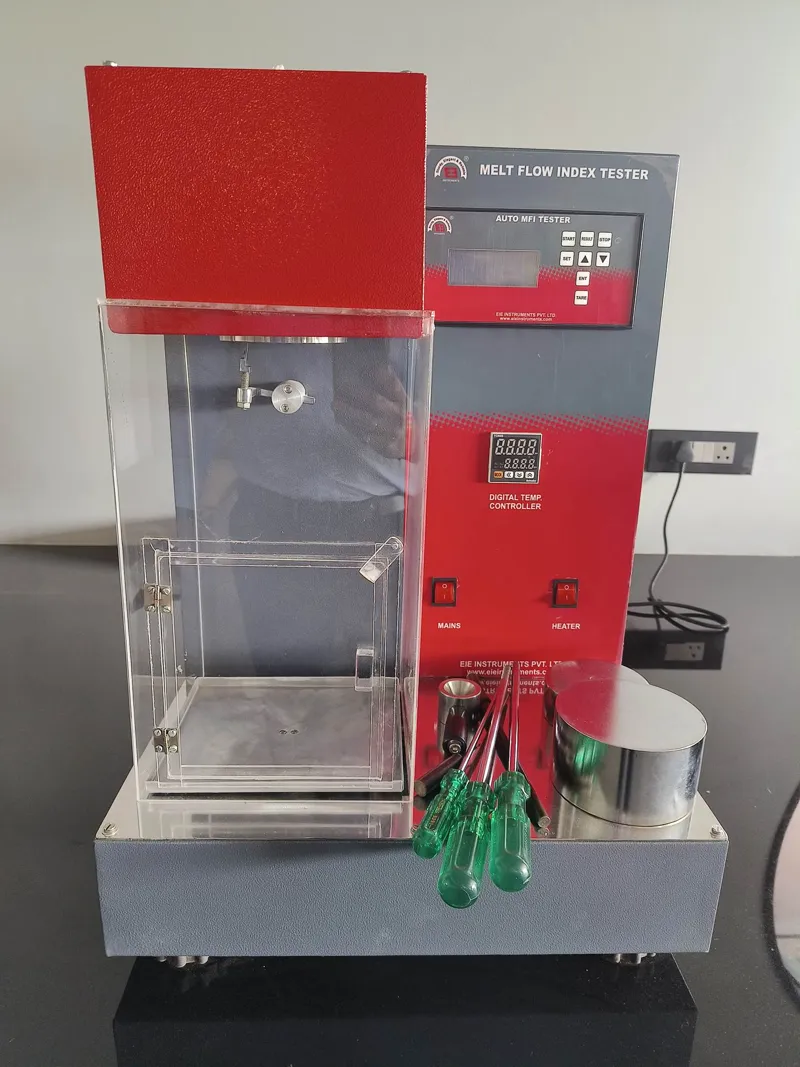

MELT FLOW INDEX TESTER -FULLY AUTOMATIC - (ASTM D1238) - METHOD A & B

MELT FLOW INDEX TESTER -FULLY AUTOMATIC - (ASTM D1238) - METHOD A , B & C

Model No: GT-109ABC

Fully Automatic Melt Flow Indexer to conduct test according to Method A and B of ASTM D 1238 and IS 2530 for Method A and B.

Specification:

  1. Bench Top Model
  2. Aesthetic exterior appearance
  3. Powder coated in attractive shades
  4. Simple & easy to use
  5. Auto Cutting
  6. Auto Weighing
  7. Auto loading of weights from 2.16 to 21.6 Kgs
  8. Auto MFR & MVR Calculation
  9. Direct print of report on thermal printer OR RS 232 port to Interface with Computer.
  10. Microcontroller for MFI test with programming parameters like, Product specification, Density of product, Operator details, Date & time of test etc.
  11. As per Method B, Piston travel length measurement by LVDT sensor with range up to 110 mm and accuracy of 0.01 mm.
  12. Weights: 2.16 Kg & 5 Kg hard chrome plated weights. (Other weights with extra cost)
  13. Timer: Range up to 999.9 Seconds
  14. Temp Controller : Microcontroller based PID temperature Controller with Range up to 400°C, Resolution up to 0.1°C & Accuracy of ±0.1°C.
  15. Accessories: Orifice, Piston, Linear, Material charger, Barrel cleaner, Orifice cleaner, Sample Cutter, Mirror, Tweezers.
  16. Power: 220V AC / 50 Hz, Single Phase (OR AS PER REQUIREMENT)


Note: In addition to this we request you to buy Personal Computer with CD Rom & Serial Interface COM Port (COM1 or COM2).


Extra weights as per details given in ASTM D 1238

(1) WEIGHTS NEED : 325gm

  1. MATERIAL : HDPE, LDPE, LLDPE.
  2. METHOD : A, D, B, E, F, N


(2) WEIGHTS NEED : 21.6kg, 10.0kg

  1. MATERIAL : HDPE, LDPE, LLDPE.
  2. METHOD : A, D, B, E, F, N


(3) WEIGHTS NEED : 3.80kg

  1. MATERIAL : ABS.
  2. METHOD : G, I


(4) WEIGHTS NEED : 1.050kg

  1. MATERIAL : POM (ACETAL)
  2. METHOD : E, M


(5) WEIGHTS NEED : 1.200kg

  1. MATERIAL : PC
  2. METHOD : O
