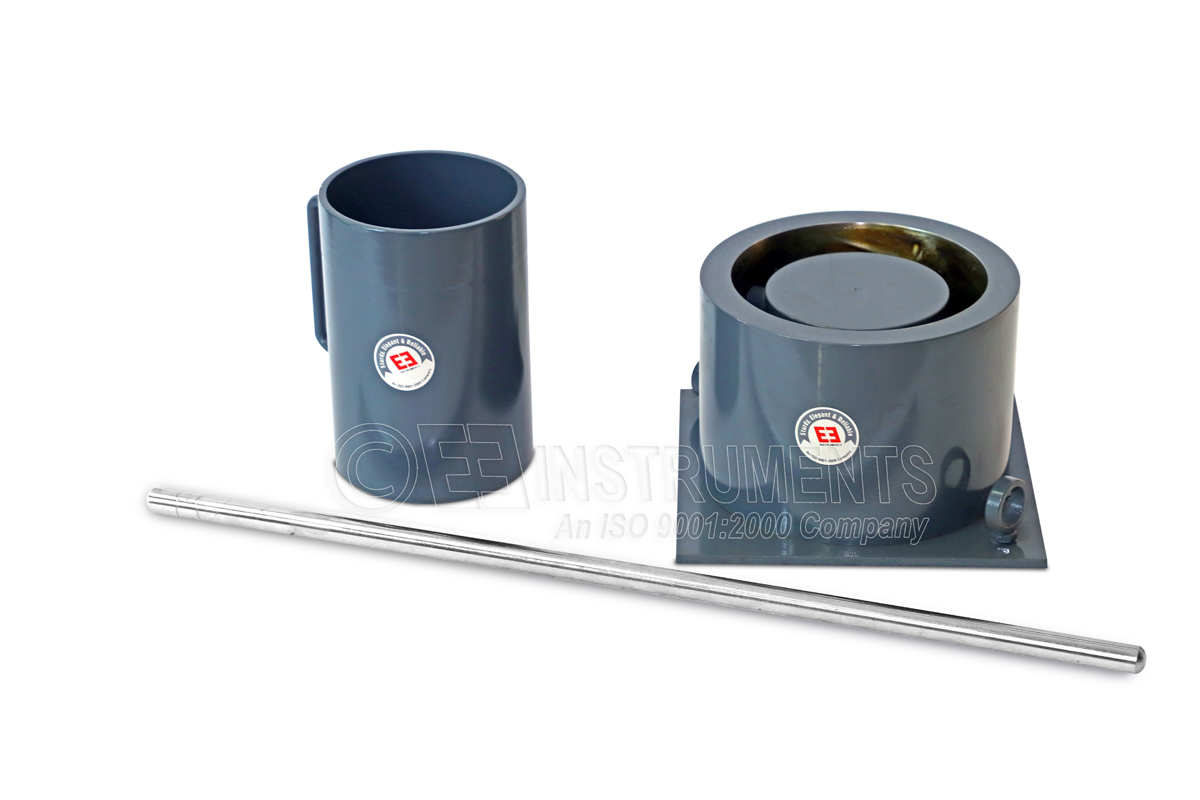

AGGREGATE CRUSHING VALUE TEST APPARATUS
Model Number : TM-017.150

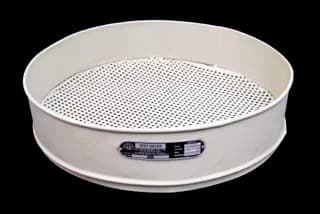

The Aggregate Crushing Value provides a relative measure of resistance of aggregate to crushing under a gradually applied compressive load. The oven dried and accurately weighed aggregates are subjected to crushing test on compression testing machine and weight of the resultant fines passing the specified IS sieve to the total weight of the sample expressed as a percentage is defined as Aggregate Crushing Value.
AGGREGATE CRUSHING VALUE TEST APPARATUS VARIETY
- 15CM WITH MEASURING CYLINDER
- 7.5CM WITH MEASURING CYLINDER
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
The Aggregate Crushing Value provides a relative measure of resistance of aggregate to crushing under a gradually applied compressive load. The oven dried and accurately weighed aggregates are subjected to crushing test on compression testing machine and weight of the resultant fines passing the specified IS sieve to the total weight of the sample expressed as a percentage is defined as Aggregate Crushing Value.
1) 75mm dia for 1/8" to1/4" size aggregate.
2) 150mm dia for 3/8" to 3/4" aggregate (standard).
3) 300mm dia for 1" to 2" aggregate.
Technical specification
|
Overall Dimensions in Inches (L x W x H) |
8.5 x 8.5 x 6 |
|
Weight (kg) |
18 |
Accessories
ELECTRONIC WEIGHING BALANCE-30 KG-1 GM-
High Impact FRP Body, Large platform size 250 x 300 mm, with built in battery back up and with certificate of stamping from W&M department. Multi function and Auto calibration with external weight. We can also offer economic weighing balance having ABS body and platform size of 250 x 300 mm.

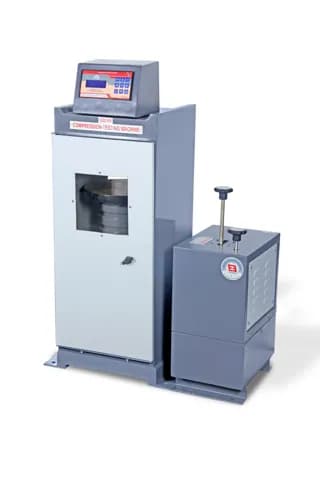

COMPRESSION TESTING MACHINE - 500 KN-DIGITAL - MANUAL PACE CONTROL
Manufactured as per International design, Plate model for highest mechanical stability, accurate centering of load and excellent repeatability. Manual pace rate control, auto stop and manual release on failure of test specimen. Reading of Load in KN and N/mm2 with auto calculation. with Pace Rate indication. Manual Pace rate Control will have certain limitations. CTM with Automatic Pace rate control is recommended for accurate Pace rate Setting. Further details as mentioned in Technical Part on following pages.
