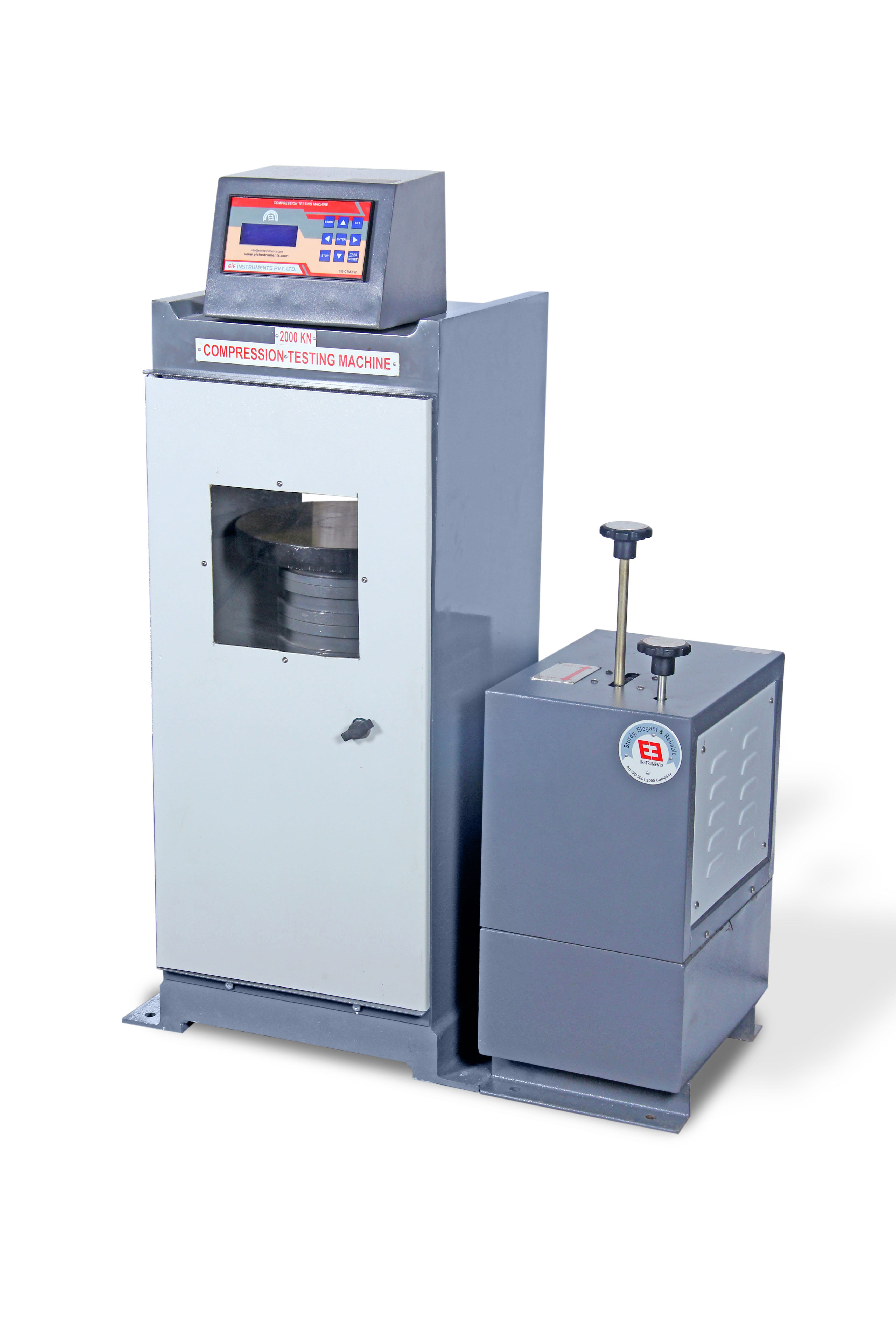

COMPRESSION TESTING MACHINE - 500 KN-DIGITAL - MANUAL PACE CONTROL

COMPRESSION TESTING MACHINE - 500 KN-DIGITAL - MANUAL PACE CONTROL

Model Number : TM-042D.500.0

None


Compliance with following International Standards:

 IS  :  14858 ‑ 2000 and IS 516

Introduction:

  • The digital compression testing machine has been designed to meet the need for a simple, economic and reliable means to test concrete for its compressive strength
  • The design expressive of simplicity, both of construction and operation, makes the machine easy to use and maintain.
  • The digital machines are provided with a MANUAL pace rate controller, to enable maintain a constant rate of loading.

Salient Features of EIE ‑ Digital CTM Machine:

  • 2 line Alphanumeric display with backlite, displaying ‑ Actual Load / Peak load, Rate of loading and Calculated load in N/mm² (as soon as sample fails)
  • Four column high stiffness and high stability fully welded construction of the load frame.
  • Direct reading of compressive strength in N/mm2 ‑No calculation required.
  • Peak hold facility.
  • Can manually control pace rate from 1 KN/Sec to 20 KN/sec.
  • Pace rate indication in KN/Sec.
  • Bar Graph indication to control the pace rate
  • Built in memory for last 10 readings
  • Automatic internal calibration(without Proving ring)
  • Safety cut out for overload and electrical short circuit.
  • Safety door on the front side for operator safety.
  • Compact Pumping unit with manually variable rate of loading.

Scope of supply:

  • High strength rigid structure (Loading Frame)
  • Pumping unit (Oil source cabinet)
  • Digital Load indicator
  • High precision pressure transmitter
  • Pair of compression platens
  • High pressure hose pipe

Salient fetchers of data manager PC software (Optional at extra cost.):

  • Two way communication i.e machine operates from computer and from the touch screen controller both (Stat, stop, save data and save graph)
  • Results directly saved in excel file
  • Graph also saved in excel file
  • Capable to save customer name, other details of cutomer, ageing of cube moulds, identification mark of the cube mould, date and time of testing
  • Capable to print direct report from the computer
  • Capable to select different test perameters like pace rate, sample size and area from the computer (software)

Note :

Use of 3 KVA three phase servo controlled stabilizer is essential to protect the machine against voltage fluctuations. Warranty voids in case of any damage due to power fluctuation.

Capacity

500 Kn

Platen size in mm

160 mm Dia

Ram Dia in mm

120 mm

Ram Travel in mm

50 mm

Vertical daylight in mm

230 mm

Horizontal daylight in mm

230 mm

Weight approx in kg

262 Kg.

Platen hardness

More than 550 Vickers hardness

Electric Motor

1 HP, Single Phase

Operation on

220 V AC Single Phase.

Least count

0.01 KN

Pace rate control

Manual control from 1 KN/Sec to 20 KN/sec

Overall Dimensions

660 X 870 X 820 (L X W X D) mm
