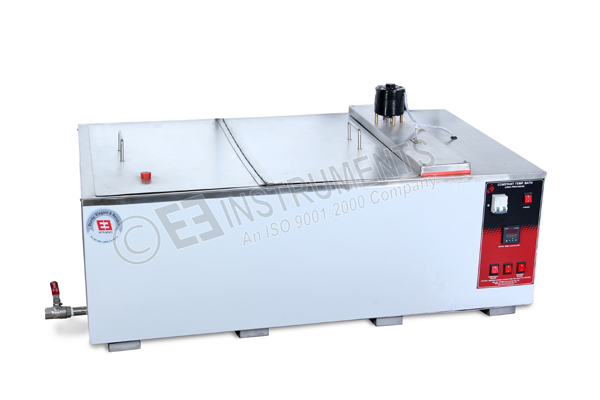

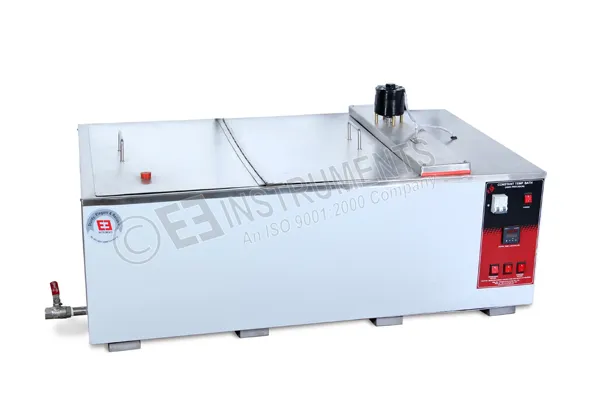

Accelerated Curing Tank having capacity to accommodate 6 Nos. of concrete cube moulds of 15cm, with a facility for accelerated curing by boiling water method up to temperature range : 100 +/‑ 2°C as per IS standard IS : 9013. Also it will have capacity for curing by warm water method at temperature 55 +/‑ 2°C. The whole body of cube mould with the sample of concrete inside is to be immersed in the tank and the Tank is stout enough toil bear heavy load on its platform.
Tank will consist of a rectangular double walled metal cabinet, inner chamber made of thick gauge stainless steel. Outer chamber made of Galvanized sheet ‑ powder coated. Specially designed L shaped High wattage heaters will be mounted in the chamber in such a way that, it facilitates easy replacement within 5 minutes by normal skilled person. It will have facility to circulate water inside the chamber by stirrer to maintain the uniform temperature of water. Inside the chamber there will be a heavy gauge stainless steel perforated platform with ribs to withstand the heavy load of the cubes. It will also have a lid with lifting handle to cover the chamber.
The front panel will have power supply indicating lamp and one main switch suitable for operation on 230 V, 50 Hz single phase, AC supply. It will also have a DIGITAL Auto tuning PID temperature indicator cum controller fitted on the front panel. Technical specifications as under.
|
Overall Dimensions |
1330 X 780 X 600 (L X W X H) mm |
|
Inner working size |
760 X 635 X 255 (L X W X H) mm |
|
Type of model |
Floor standing model |
|
Construction |
Double walled construction |
|
Inner chamber |
Stainless Steel S.S.- 304 Grade Material |
|
Exterior body |
20 SWG Galvanized sheet Material |
|
Exterior Body Paint |
Powder coated in attractive shades |
|
Can accommodate |
6 cubes of 150 mm |
|
Insulation |
Special grade glass wool for purpose of insulation to avoid heat and cool losses. |
|
Insulation thickness |
50 mm |
|
Sample placement arrangement |
Heavy gauge stainless steel perforated platform with ribs to with stand the heavy load of the cubes. |
|
Lid of the bath |
Lid with lifting handle to cover the chamber. |
|
Temperature controller |
Microprocessor based Digital Temperature Controller cum Indicator |
|
Temperature Range |
5 °C above ambient to 100 °C |
|
Temperature Display |
LED Digital Display |
|
Temperature sensor |
PT-100 Sensor |
|
Temperature Resolution |
0.1 °C |
|
Temperature Accuracy |
± 2 °C |
|
Temperature Uniformity |
± 2 °C |
|
Heater Types |
Specially designed L shaped High wattage heaters |
|
Water Circulation |
Stirrer to maintain uniform temperature throughout the chamber. |
|
PC Interface |
Optional computer interface for data logging purpose |
|
Power Wattage |
6.0 KW |
|
Power Supply |
230 V, A.C., Single Phase |
|
Weight approx |
90 kg (Unpacked) |
