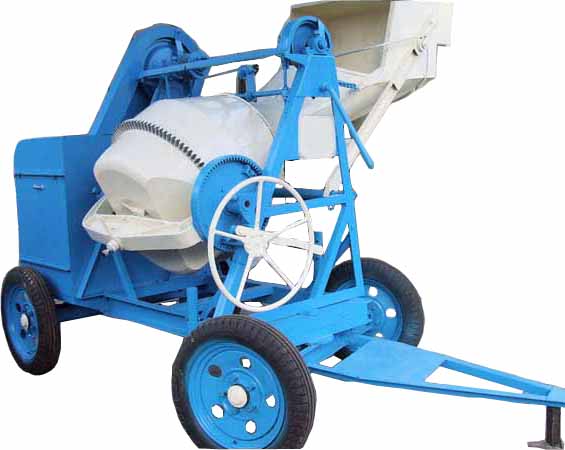

Hydraulic concrete mixer with hopper - 10/7 CFT:
Detailed Specifications:
- Hydraulic full bag concrete mixer machine
- Incorporates Heavy duty power pack diesel Engine
- Supplied complete with hopper
- Mobility on 4 Nos. pneumatic Wheels with roller bearing.
- Fitted with M.S. York heavy type with buses & bearing
- Consists of Heavy type drum, heavy teeth with bearing & buses
CONCRETE MIXER VARIETY: HYDRAULIC WITH HOPPER - 10/7 CFT (DIESEL ENGINE)
|
Capacity |
10/7 Feet |
|
Diesel Engine |
”Prince” Brand |
|
Diesel Engine capacity |
7.5 H.P Diesel engine With |
|
Pneumatic Wheels size |
(5 x 19) |
|
Base Chassis |
125 x 65 mm x 6 mm |
|
Base channel |
2490L x 1650W x 1320H |
|
Base Drum |
C.I Drum |
|
Drum diameter |
1015 mm Diameter |
|
Drum body thickness |
22 mm Thickness |
|
Drum weight |
250/- kg Weight |
|
Mixing Volume |
200 Liters ( One Bag) |
|
Hopper |
Fabricated from 3.15 mm M.S sheet, which is powder coated |
|
Hopper dimensions |
1070 mm x 815 mm x 360mm |
|
Hopper Type |
Conical Hopper |
|
Hydraulic Control Valve |
“Bhucher” make hydraulic control valve, |
|
Gear Pump |
“Dauti” Make 20 ltre.Gear pump, |
|
Hydraluic cylinder |
“Decent” Make hydraulic Cylinder, |
|
Pressure pipe |
“Makson” makeR2 Pressure Pipe. |
