CONCRETE PERMEABILITY TESTER

CONCRETE PERMEABILITY TESTER

Model Number : TM-139-D-3

Compliance Standards : IS 516 (Part 2/Sec1): 2018, EN 12364 | DIN 1048 | BS EN 12390 (PART 8). Applications : Water Permeability testing machine is at 3 points to determine the depth of penetration of the water into the concrete (impermeability) under known time and pressure. An operator can test any - Concrete cylinder of size 150 mm dia. X 160 mm high or cube moulds of 150 x 150 x 150 mm dimensions. Supplied complete with necessary Spanners.

CONCRETE PERMEABILITY TESTER OF VARIETY
  • 3 CELL
  • 6 CELL
Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Compliance Standards:

IS 516 (Part 2/Sec1): 2018|EN 12364 | DIN 1048 | BS EN 12390 (Part-8)


Applications :

Water Permeability testing machine with 3 cells to determine the depth of penetration of the water into the concrete (impermeability) under known time and pressure.


Descriptions :

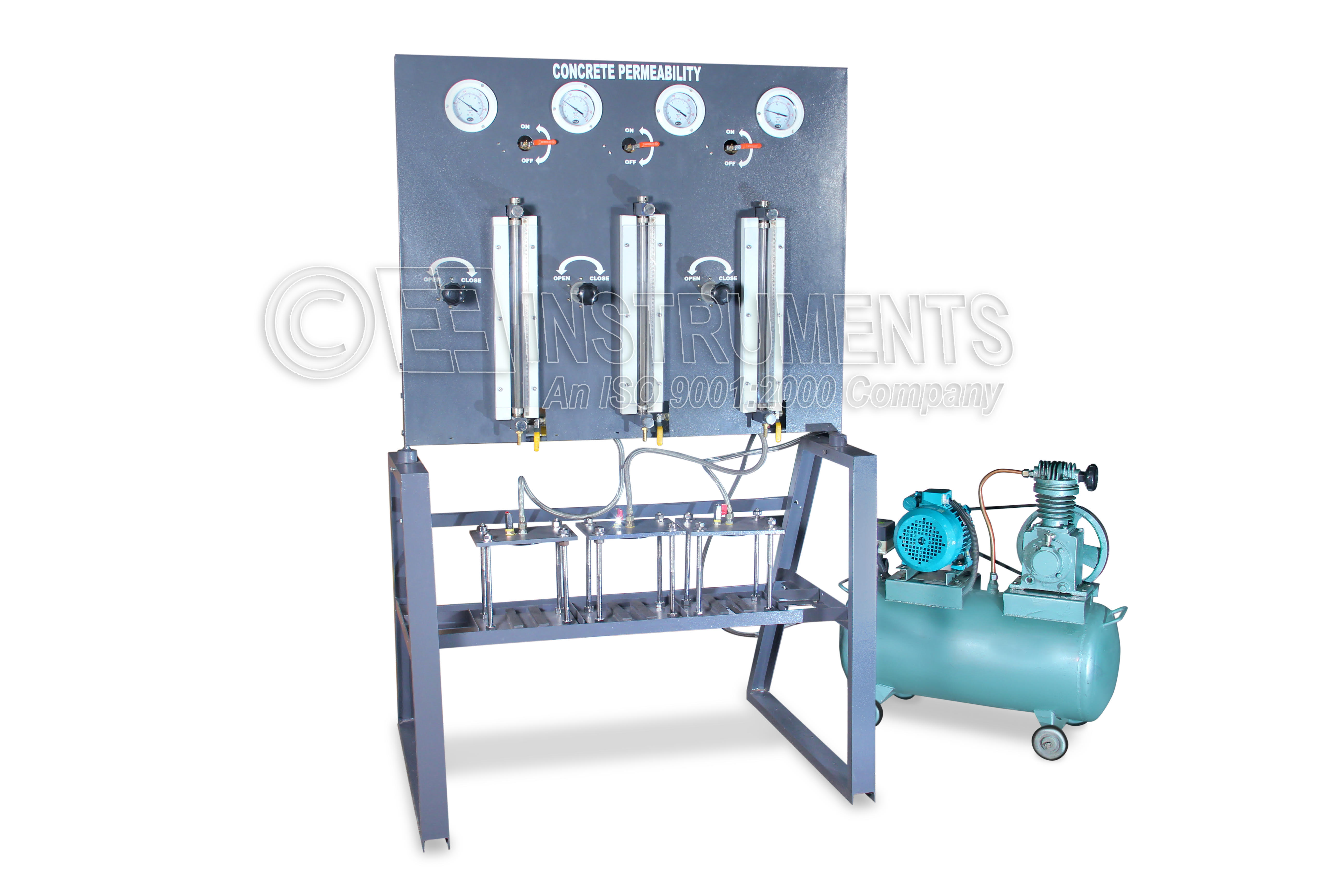

  1. Concrete Permeability Apparatus consists of three specimen holder assemblies as per the standard
  2. Fitted with manifold assembly to hold end Pressure Gauge of 15kg/cm2 (15 Bar) and a chamber Pressure  Gauge of 20 kg/cm2 (20 Bar) with another pressure gauge of 15 kg/cm2 (15 Bar) on the chamber to show the inlet pressure.
  3. An operator can test any - Concrete cylinder of size 150 mm dia. X 160 mm high or cube moulds of 150 x 150 x 150 mm dimensions.
  4. Supplied complete with Air Compressor


How the measurement is done?

The specimen is put into the test chamber, clamped with suitable flanges and gaskets, and then a known water pressure is applied on the specimen’s surface for prescribed time as requested by the respective Standard, by using a suitable air compressor (accessory). The water penetrated is measured by splitting the specimen.

Technical specification
up-botton
CONCRETE PERMEABILITY TESTER - AS PER DIN 1048 - 3 CELL - WITH AIR COMPRESSOR

Overall Dimensions

720 X 1220 X 2000(L X W X D) mm

Net weight (in kg)

135 kg
