ABRASION RESISTANCE TESTING MACHINE FOR GEOTEXTILE - ASTM D4886

ABRASION RESISTANCE TESTING MACHINE FOR GEOTEXTILE - ASTM D4886

Model Number : GT-110

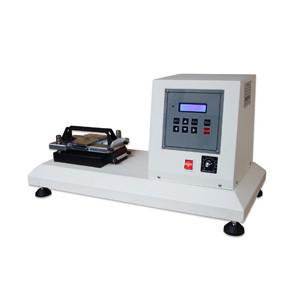

Geotextile Abrasion Resistance Tester is used to determine the resistance of geotextile or geotextile-related products to abrasion using an abrasion tester by Sand Paper/Sliding Block Method. It is only applicable to geotextile, not to geomembranes, geogrids. A predetermining electro-magnetic counter allows the sample to be abraded to the desired number of strokes.

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Compliance Standards:

ISO 13427, ASTM D4886, IS 14714, Annex B of IS 16653


Applications:

Geotextile Abrasion Resistance Tester is used to determine the resistance of geotextile or geotextile-related products to abrasion using an abrasion tester by Sand Paper/Sliding Block Method. It is only applicable to geotextile, not to geomembranes, geogrids. A predetermining electro-magnetic counter allows the sample to be abraded to the desired number of strokes.



Technical specification
up-botton
ABRASION RESISTANCE TESTING MACHINE FOR GEOTEXTILE - ASTM D4886

Upper/Lower Plate size

50 × 200 mm

Stroke length

25 ± 1 mm

Speed of reciprocating plate

90 Cycles/Minute

Weight (Including the upper plate & dead weight)

6 ± 0.01 kg

Counter range

1~9999, 1~99990, 1~999900 - Settable

Power Supply

230 Volts, 50 Hz, Single Phase, AC Supply
