GRADIENT RATIO TEST APPARATUS - (ASTM D 5101)-
Model Number : GT-108M
Complies with following International Standards : ASTM D5101. Purpose : This test method covers a performance test applicable for determining the Soil‑Geotextile system permeability and clogging behavior under unidirectional flow conditions. Detailed specification as follows:
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance Standards
ASTM D5101
Applications
Evaluates particle retention and permeability of soil/geotextile systems. The test determines the compatibility of various types of geotextiles with cohesionless soils by measuring hydraulic gradient, system permeability, and gradient ratio. A 4in (102mm) diameter composite sample is prepared in the permeameter and tested with water in unidirectional flow.
Standard supply

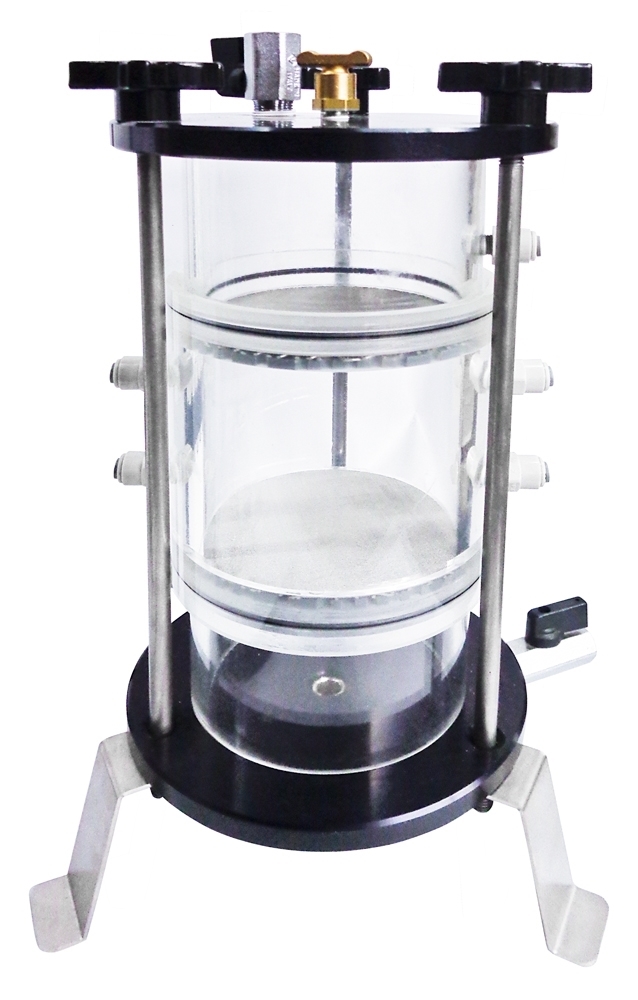

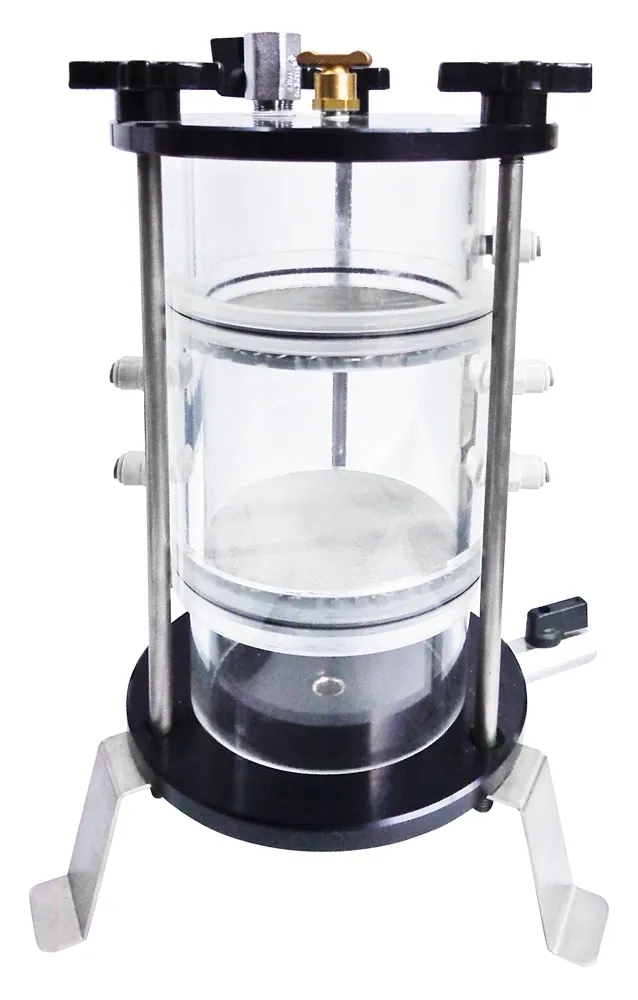

- Soil‑Geotextile Permeameter (three‑piece acrylic chamber unit) ‑ 100mm
- Two Constant Water Head Devices, one mounted on a jack stand (adjustable) and one stationary ‑ Fig. 3 of ASTM D5101
- Soil Leveling Device
- 3-Piece Acrylic Chamber design
- Stainless steel clamping rods and sturdy base
- Six manometer ports of parallel glass tubes and measuring rulers, with algae-inhibiting mesh discs
- Anodized top and bottom caps with vent valves
- Two Stainless Steel Support Screens of 5 mm (No. 4) mesh
- Two Stainless Steel Support screen of 150 μm (No. 100) mesh (Alage Inhibitor / Micro Screen)
- Piping barriers (caulk), clamping brackets, and plastic tubing ‑ Fig. 2 of ASTM D5101
Optional accessories at extra cost (Refer to the recommended accessories list)
- Glass Thermometer (0 to 50 ± 1°C)
- Graduated Cylinder, 100 ± 1 cm3 capacity
- Stopwatch
- Electronic Balance ‑ 2 kg x 0.1 Gram
- Carbon Dioxide, (CO2), gas cylinder and regulator

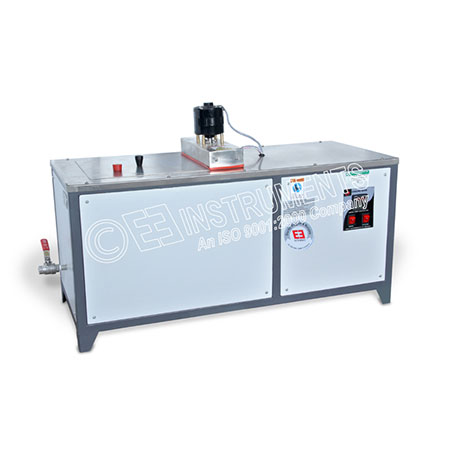

- Low temperature waterbath

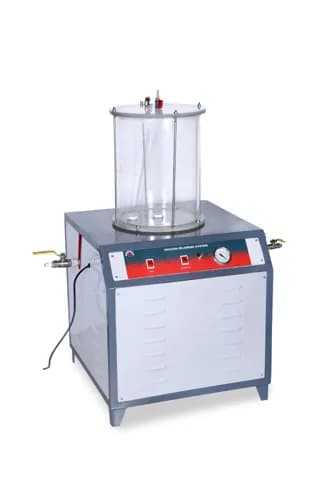

- Water De‑airing System
- Soil Sample Splitter
- Pan, for drying soil
- Mortar and Pestle, for pulverizing soil
Technical specification
