WATER RETENTION TEST APPARATUS - IS-2250, IS 10850

WATER RETENTION TEST APPARATUS - IS-2250, IS 10850

Model Number : EIE-7017

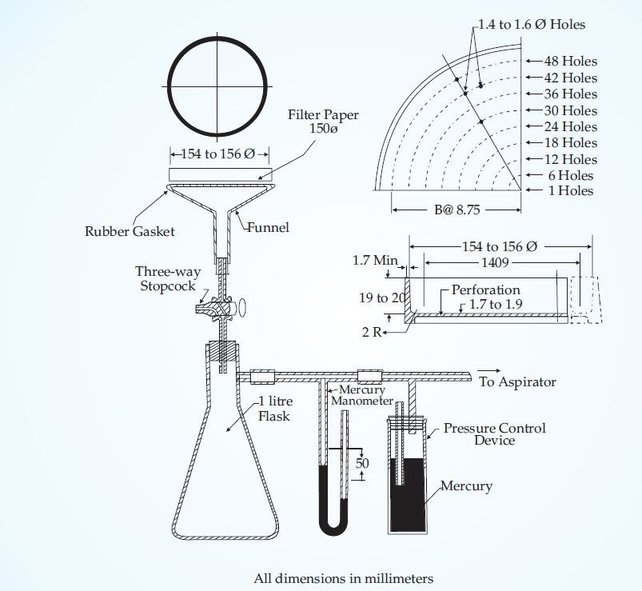

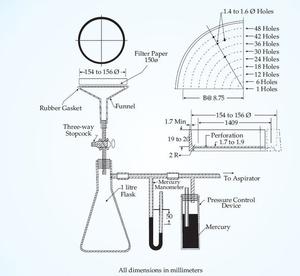

To determine the water retentivity characteristics of masonry mortar. As per figure for 4 of IS 2250 (Appendix C). Complete with Aspirator Pump,

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

To determine the water retentivity characteristics of masonry mortar. As per figure for 4 of IS 2250 (Appendix C). Complete with Aspirator Pump,


Compliance Standards:

As per IS 2250. (Appendix C) , IS 10850


Details:

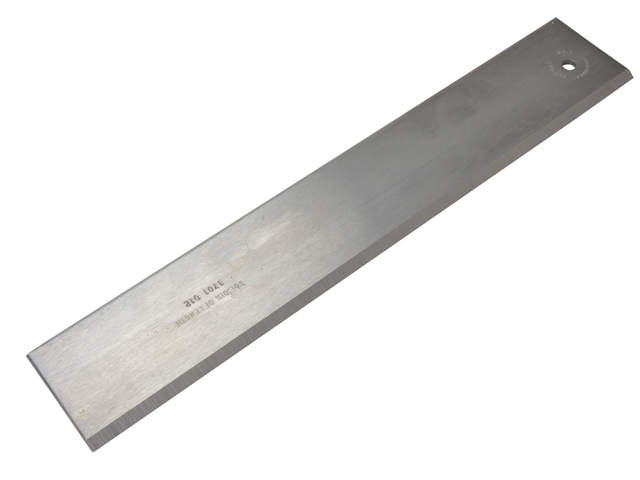

As per figure for 4 of IS 2250 complete with Aspirator Pump,  Complete with Mercury Manometer and all the Standard Accessories (except Whatman filter Paper, straight edge which is essential for the test and quoted separately under optional accessories )


The other Instruments as mentioned in Appendix 'A' of IS:2250 will be available at Extra Cost ( Cube Mould, Mortar Mixer, Tamping Rod, Gauging Trowel and Flow Table)

Technical specification
up-botton
WATER RETENTION TEST APPARATUS - IS-2250, IS 10850

Overall Dimensions in Inches (L x W x H)

31 x 16 x 25

Weight (kg)

27
