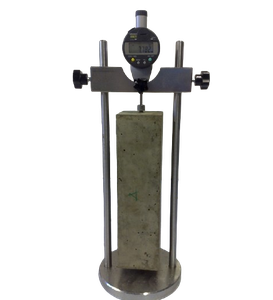

DRYING SHRINKAGE APPARATUS FOR CONCRETE - AS PER IS 516(PART-6)

Compliance Standards

BIS 516 (Part-6), ASTM C1260, ASTM C151, ASTM C157, ASTM C227, ASTM C341, ASTM C342, ASTM C441, ASTM C452, ASTM C490, ASTM C596, ASTM C806, ASTM C878, AASHTO M210, AASHTO T107,

Details

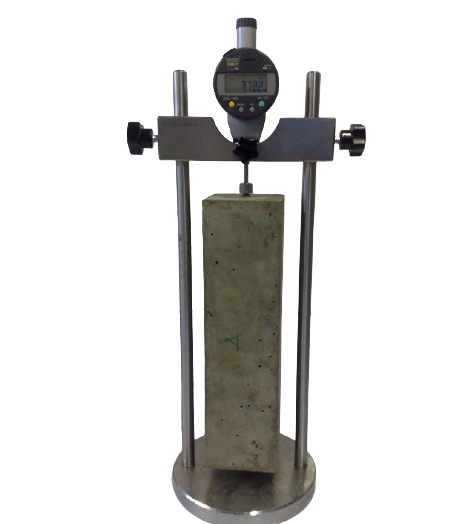

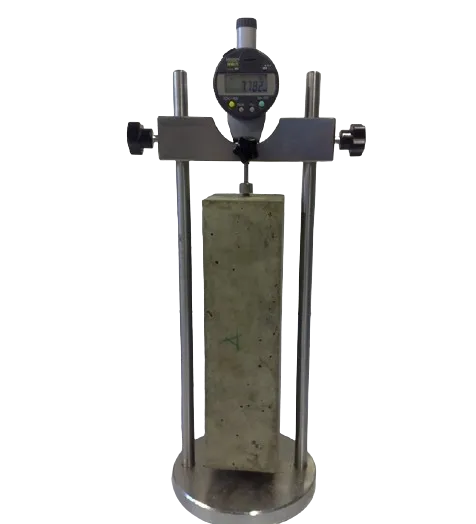

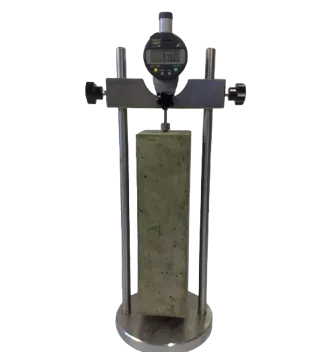

Consist of a measuring apparatus incorporating a suitable dial gauge reading accurately to 0.001 mm. This gauge will be rigidly mounted in a measuring Frame and will have a recessed end which can be located upon a 6.5 mm diameter ball or other reference point cemented in the specimen. The other end of the frame will have a similar recessed seating which can be located upon a second ball or reference point in the specimen. An invar steel rod of a suitable length with 6.5 mm diameter steel ball or hemispherical ends can be used as a standard of length against which the readings of the gauge can be tested. The apparatus will be designed to test Mould of 75mm x 75mm x 300mm long concrete specimen.

Note

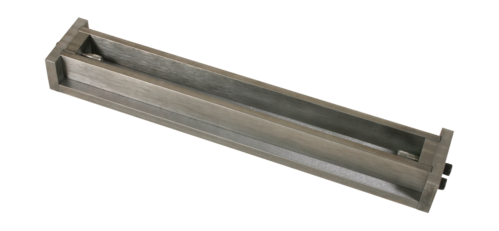

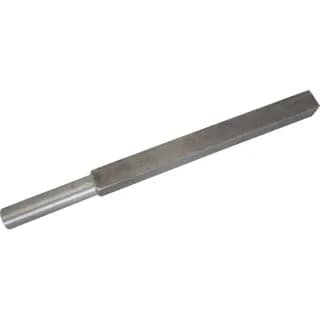

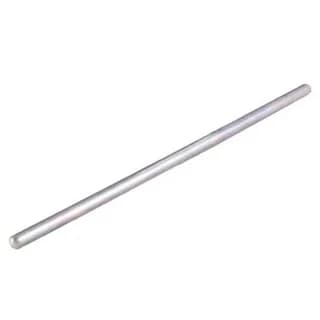

Mould for casting concrete specimen of 75 x 75 x 300, Gauge stud, Length gauge, Tamping bar, Tamping rod, Vibrating Table, Rubber Mallet, weighing balance and drying Oven necessary for the test are available at extra cost from us
