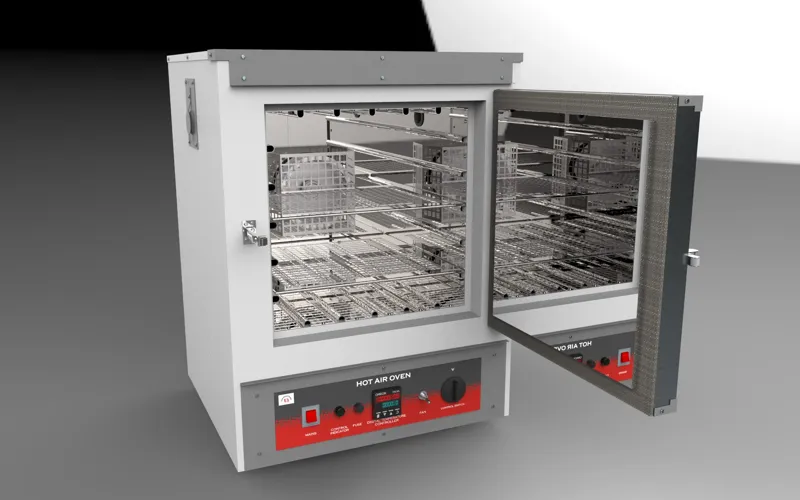

Details of oven:
- With heating elements on three sides, ensuring uniform temp. distribution throughout the chamber
- Sealed and enclosed heaters to working chamber for minimum heat loss
- 80/20 nichrome heating elements, ensuring long lasting and continuous heating
- Special heavy duty Stainless steel lock and door hinges with spring and roller mechanism
- Stainless steel crimped wire mesh Shelves to withstand heavy load and minimum resistance to air circulation for better heat distribution
- Provision to add more shelves, as per requirement of test ‑ Shelves adjustable to place test samples or Glasswares of varying dimensions
- Adjustable air ventilation at top
- Rotating shelf with RPM indicator as per IS 12177 (Method A) Requirement
- Complete with pilot indicating lamps, 2 meter cord wire and power plug
|
Working size |
45 x 45 x 45 cm ( H x W x D) |
|
Chamber volume |
92 Liters |
|
Outer Chamber |
CRC powder coated |
|
Inner chamber |
Mirror polished S.S. 304 Grade material |
|
Insulation |
100mm high density Glasswool insulation on all sides for minimum heat loss |
|
Heating element |
With heating elements on three sides, ensuring uniform temp. distribution throughout the chamber |
|
Heater |
Sealed and enclosed heaters to working chamber for minimum heat loss |
|
Temperature Range |
50°C to 300°C |
|
Temperature controller |
Micro processor based Auto tune PID digital controller |
|
Temperature Accuracy |
± 1°C or better |
|
Door lock |
Special heavy duty Stainless steel lock and door hinges with spring and roller mechanism |
|
Shelves |
Stainless steel crimped wire mesh Shelves to withstand heavy load and minimum resistance to air circulation for better heat distribution |
|
No Of Shelves |
02 Numbers |
|
Fan |
Motorized blower for forced air circulation |
|
Rotation of Shelf |
at 1 RPM as per IS 12177 Standard (Method A) |
|
RPM Indicator |
Digital RPM Indicator for Shelf rotation |
|
Rating |
2 KW |
|
Operation |
220/230 Volts, 50 Hz, Single Phase, AC Supply |
|
Overall Dimensions |
635 X 720 X 790 (L X W X D) mm |
