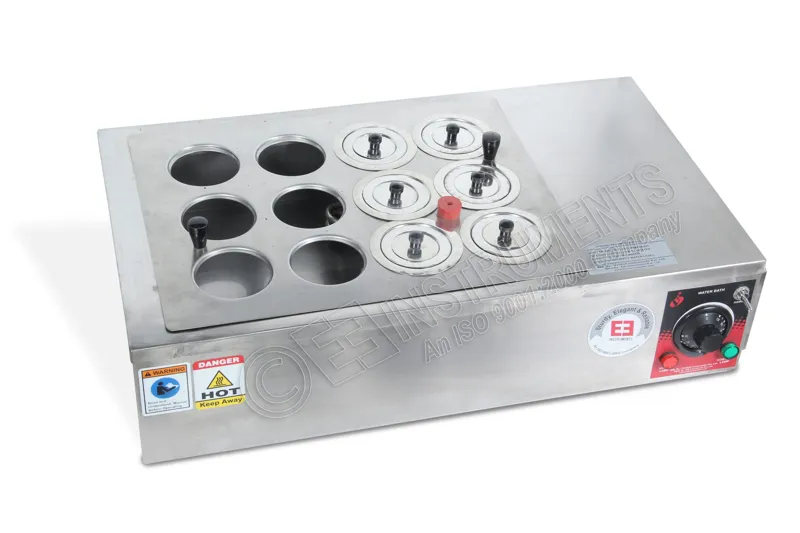

DOUBLE WALLED WATERBATH-RECTANGULAR-COMPLETE SS-DIGITAL-12 HOLES-40 X 30 X 10 CM-

DOUBLE WALLED WATERBATH-RECTANGULAR-COMPLETE SS-DIGITAL-12 HOLES-40 X 30 X 10 CM-

Model No: EIE-402DG12

Double walled, Outer Chamber and Inner Chamber made of Stainless Steel - 304, fully argon welded, Glasswool insulation, Temp. range 5°C above ambient to 99°C , Temp. control By Auto Tuning dual display PID Digital Controller, with Stainless steel lid with 12 Holes of 3"dia with concentric rings and power plug with cord wire ,working on 230 V AC single phase. Use of DM/RO Water as feed water to the working chamber is mandatory, Detail Specification mentioned in the long description.

Double walled, Outer Chamber and Inner Chamber made of  Stainless Steel - 304, fully argon welded, Glasswool insulation, Temp. range 5°C above ambient to 99°C , Temp. control  By Auto Tuning dual display PID Digital Controller, with  Stainless steel lid with 12  Holes of 3"dia with concentric rings and power  plug with cord wire ,working on 230  V AC single phase.


Salient Features


  1. Aesthetical exterior appearance
  2. Design simplicity and superior quality
  3. Easy cleaning and Maintenance free operation
  4. Fitted with drain plug

Note

Use of DM/RO Water as feed water to the working chamber is mandatory, warranty void in case of non compliance.

Construction Double walled
Outer Chamber 18 SWG Stainless Steel ( AISI 304) ARGON WELDED
Inner chamber 20 SWG Stainless Steel ( AISI 304) ARGON WELDED
Insulation Glass wool insulation
Chamber Size 40 cm x 30 cm x 10 cm (W x D x H)
Chamber volume 12 Liters
Temperature Range 5 °C above ambient to 99 °C
Temperature Control By Microprocessor based Auto Tune PID Digital Temperature Controller Cum Indicator
Temperature Display LED Display
Temp. Accuracy 0.5 °C
Temp. Resolution 0.1 °C
Temp Measurement By Pt 100 sensor
Operation on 220/230 volts AC single phase
Standard Supply None
None Stainless steel lid with 12 holes of 3” diameter concentric rings
None Power plug with cord wire
Overall Dimensions 700 X 400 X 250 (L X W X D) mm
Weight (Approx.) 19 kg
