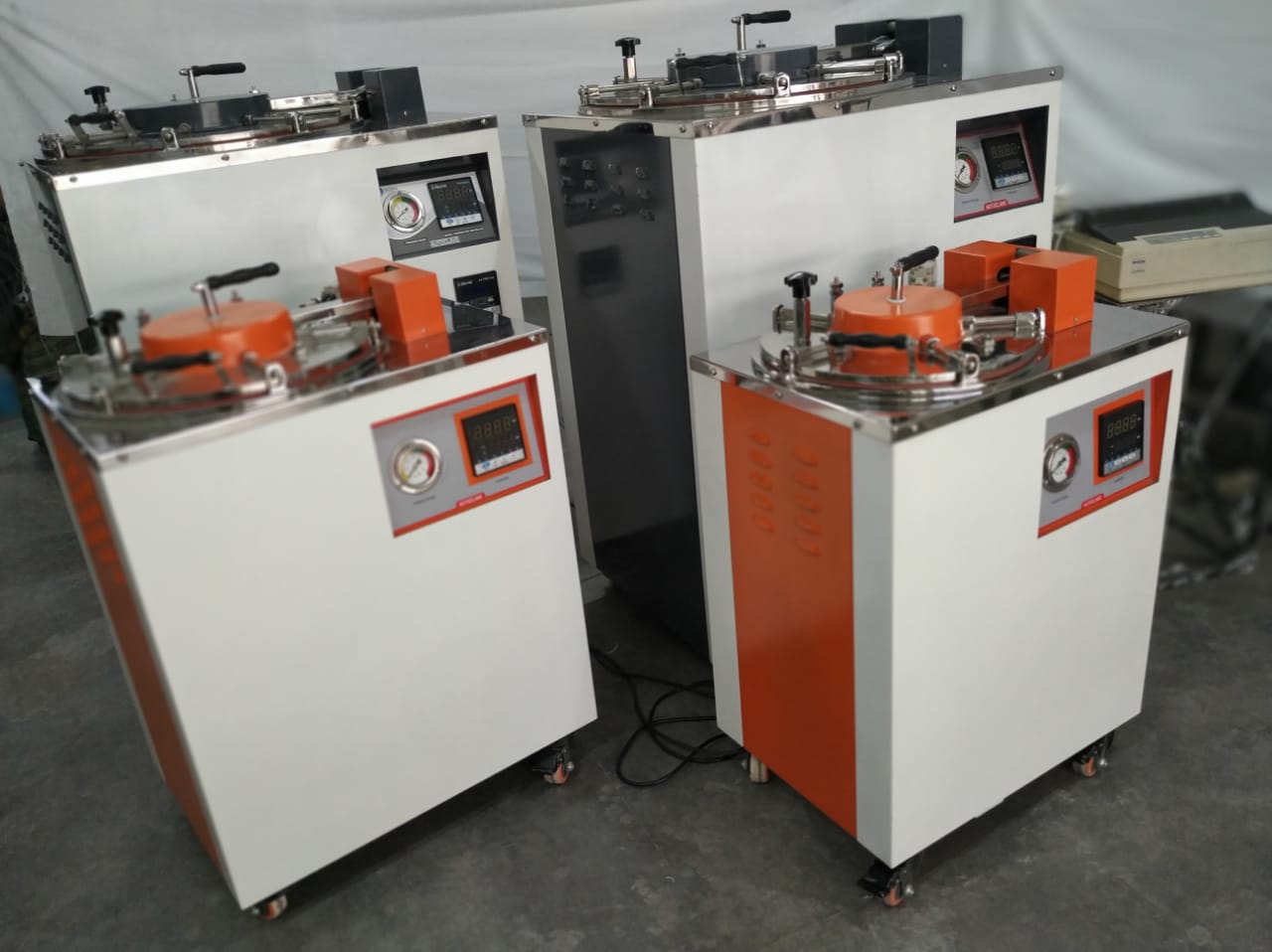

RECTANGULAR SHAPE VERTICAL AUTOCLAVE-NON GMP-SINGLE LEVER LOCK-FULLY AUTOMATIC-30 X 50 CM (D X H)

RECTANGULAR SHAPE VERTICAL AUTOCLAVE-NON GMP-SINGLE LEVER LOCK-FULLY AUTOMATIC-30 X 50 CM (D X H)

Model Number : EIE-206RSLLPFA35

Rectangular shape exterior structure. Top loading single lever vertical autoclave. S.S. - 304 Cylindrical chamber with ASTM Standard bottom dish. Microprocessor based PID controller for fully automatic operation. Further details is mentioned in the long description.

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Salient Features

  • Top loading Autoclave with Single Lever Radial Locking facility
  • Rectangular shape exterior body structure
  • SS - 304 cylindrical shell with ASME standard Bottom dish for 100% Drain
  • Exterior body is Powder coated in attractive shades
  • Single chamber for steam generation and water storage
  • Control panel is mounted in the frame with necessary electronics
  • Fully automatic Digital PID controller
  • Displays current temperature & set temperature with remaining cycle time
  • Automatic Air Purging
  • Automatic Steam Exhaust at EOC (End Of Cycle)
  • Process will not start unless lid is not locked fully and lid will not open when chamber is under pressure.
  • Caster wheel for easy movement
  • Supplied complete With S.S. - 304 wire mesh carrier
  • Supplied complete with Calibration certificate with traceability
  • Provision for Qualification documents (DQ, IQ, OQ, PQ) (At extra cost)


Solenoid valve:

  • Initial automatic air purging cycle
  • Automatic steam exhaust (Depressurized) at the end of cycle.


Safety features:

  • Double safety radial locking arrangement
  • Low water level heater safeguard.
  • Low water level cut off system.
  • Safety high pressure release valve (Spring loaded mechanical valves)
  • Safety high temperature cut off.


Mode of Heating :

Electrically heated by special flange type/immersion type heaters


Technical specification
up-botton
RECTANGULAR SHAPE VERTICAL AUTOCLAVE-OUTER POWDER COATED-SINGLE LEVER LOCK-FULLY AUTOMATIC-30 X 50 CM-D X H

Operation Type

Fully Automatic Operation

Temperature controller

Microprocessor based Digital Temperature Indicator cum Controller

Display

Digital Display

Temperature sensor

PT - 100

Pressure Range

15 to 22 PSI, factory set at 15 PSI

Temperature Range

121°C to 125 °C

Temperature Resolution

0.1 °C

Temperature Accuracy

± 0.5 °C

Working Chamber Size

30cm x 50cm (Dia x Height)

Volume

35 Liters

Power

Rating 1.5 KW

Operates on

230 Volts, 50 Hz, AC Supply

Sterilization timer

In built digital timer; timer can be adjusted as per sterilization load requirement

Safety Valves

Solenoid valve for automatic steam exhaust, Manual Preset Safety Valve, & Extra safety valve, Manual release valve, Manual Drain Valve
