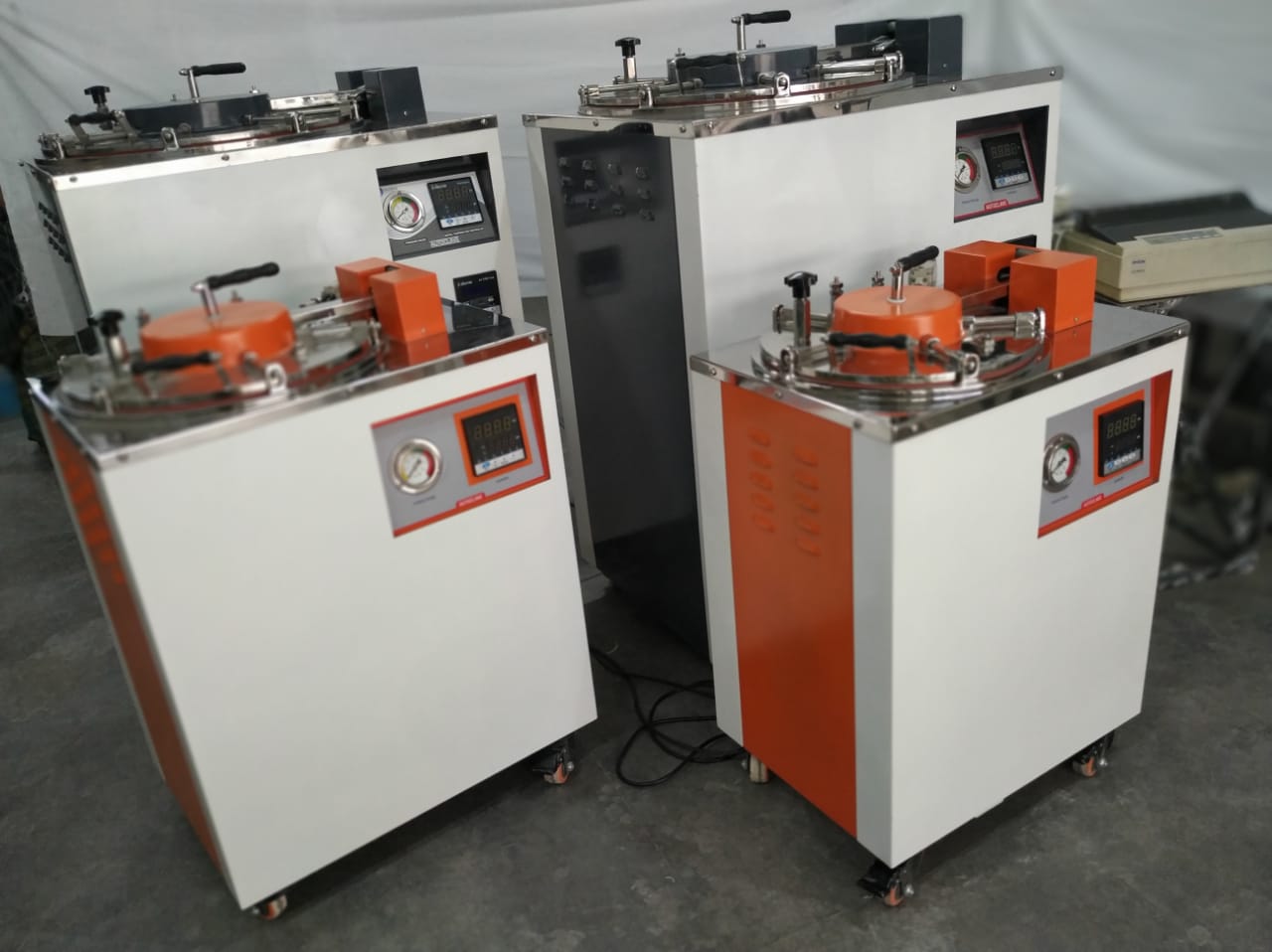

RECTANGULAR SHAPE VERTICAL AUTOCLAVE-NON GMP-SINGLE LEVER LOCK-FULLY AUTOMATIC-55 X 75 CM (D X H)

RECTANGULAR SHAPE VERTICAL AUTOCLAVE-NON GMP-SINGLE LEVER LOCK-FULLY AUTOMATIC-55 X 75 CM (D X H)

Model No: EIE-206RSLLPFA178

Rectangular shape exterior structure. Top loading single lever vertical autoclave. S.S. - 304 Cylindrical chamber with ASTM Standard bottom dish. Microprocessor based PID controller for fully automatic operation. Further details is mentioned in the long description.

Salient Features

  1. Top loading Autoclave with Single Lever Radial Locking facility
  2. Rectangular shape exterior body structure
  3. SS - 304 cylindrical shell with ASME standard Bottom dish for 100% Drain
  4. Exterior body is Powder coated in attractive shades
  5. Single chamber for steam generation and water storage
  6. Control panel is mounted in the frame with necessary electronics
  7. Fully automatic Digital PID controller
  8. Displays current temperature & set temperature with remaining cycle time
  9. Automatic Air Purging
  10. Automatic Steam Exhaust at EOC (End Of Cycle)
  11. Process will not start unless lid is not locked fully and lid will not open when chamber is under pressure.
  12. Caster wheel for easy movement
  13. Supplied complete With S.S. - 304 wire mesh carrier
  14. Supplied complete with Calibration certificate with traceability
  15. Provision for Qualification documents (DQ, IQ, OQ, PQ) (At extra cost)


Solenoid valve:

  1. Initial automatic air purging cycle
  2. Automatic steam exhaust (Depressurized) at the end of cycle.


Safety features:

  1. Double safety radial locking arrangement
  2. Low water level heater safeguard.
  3. Low water level cut off system.
  4. Safety high pressure release valve (Spring loaded mechanical valves)
  5. Safety high temperature cut off.


Mode of Heating :

Electrically heated by special flange type/immersion type heaters



Operation Type Fully Automatic Operation
Temperature controller Microprocessor based Digital Temperature Indicator cum Controller
Display Digital Display
Temperature sensor PT - 100 Sensor
Pressure Range 15 to 22 PSI, factory set at 15 PSI
Temperature Range 121°C to 125 °C
Temperature Resolution 0.1 °C
Temperature Accuracy ± 0.5 °C
Working Chamber Size 55cm x 75cm (Dia x Height)
Volume 178 Liters
Power Rating 1.5 KW
Operates on 230 Volts, 50 Hz, AC Supply
Sterilization timer In built digital timer; timer can be adjusted as per sterilization load requirement
Safety Valves Solenoid valve for automatic steam exhaust, Manual Preset Safety Valve, & Extra safety valve, Manual release valve, Manual Drain Valve
