STANDARD PENETROMETER FOR GREASE - AUTOMATIC DIGITAL TIMER - GEARED HEIGHT ADJUSTMENT & DIAL GAUGE - (1/2TH SCALE PENETROMETER)-

STANDARD PENETROMETER FOR GREASE - AUTOMATIC DIGITAL TIMER - GEARED HEIGHT ADJUSTMENT & DIAL GAUGE - (1/4TH SCALE PENETROMETER)-

Model No: EIE-PTGT-130AT1/4

As per IP 376, ASTM D217, IS 1448 (P-60), IP 50. In addition to regular features, this model is Fitted with a Micrometer differential gearing system for fine movement of penetration Cone. Complete with Automatic Timer and Penetration cup. Water bath to condition the sample is available at extra cost.

Compliance with following International Standards

IP 376, ASTM D217, ASTM D1403, IP 50, IP 301


Significance & Use

Cone penetration tests not only evaluates the consistency of Lubricating Grease over the full range of NLGI Numbers from 000 to 6, but also evaluates the consistency of stiff greases having penetration number less than 85.


Salient Features

  1. Compact design and rugged construction ensures long service life and facilitates transport for field applications.
  2. Powder coated body parts for aesthetical outer appearance
  3. Sturdy cast iron base provides excellent support.
  4. Built‑in spirit level and leveling screws ensure proper alignment during testing.
  5. Supplied with Cone, container, weight and Digital time controller


Brief construction details

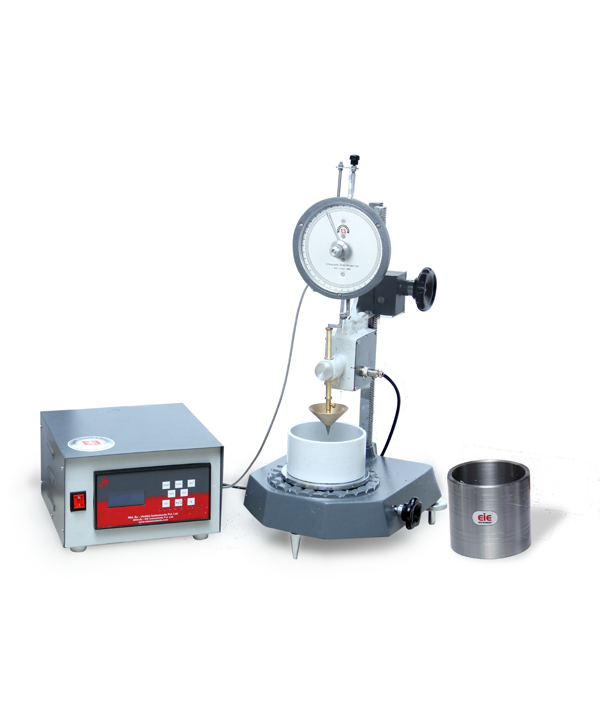

  1. The apparatus consists of a cast aluminum base with an iron stand on which moves an aluminum arm.
  2. A 6" dial is fixed on this arm and a brass chromium plated rod slide through the lower portion of the arm.
  3. A steel cone with plunger is fitted to this rod.
  4. The dial is graduated from 0‑400 in one tenth millimeter sub division.
  5. Rack, pinion and pointer assembly is provided for fine adjustment of Penetration Arm / Head
  6. The base of the instrument is also user ‑ adjustable.
  7. It can also be lifted up or down with the jack provided at the bottom.
  8. The penetration time is controlled and indicated on Digital Timer Panel with least count of 0.1 second.
  9. The automatic digital timer and electrical arrangement, which on push of a button, allows the plunger rod to fall freely or 5 seconds and clamps it automatically after 5 seconds.
  10. The penetration value is measured and indicated on dial gauge.
  11. Dial Gauge measures the penetration distance in 1/10th mm accuracy.
  12. Operates on 230 Volt, 50 Hz, Single Phase, AC Supply


Technical specifications of cone and its attachment

  1. Mass of cone : 22.5 ± 0.025 grams
  2. Mass of movable attachment : 15 ± 0.025 grams
  3. Total mass of cone and its movable attachment : 37.5 ± 0.050 grams

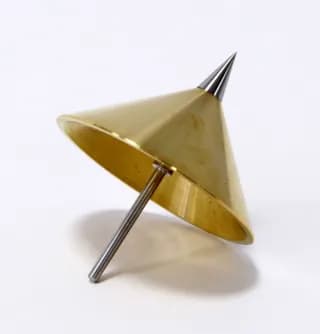

  4. Type of cone : Hollow 90° cone, Highly polished stainless steel tip


Supplied complete with following Accessories

  1. Digital time controller with auto magnetic clutch release mechanism on push of a button. Having timing range 0‑99 minutes (No need of stop watch)   1 No
  2. Sample container of 76.2mm dia x 63.5mm height   1 No
  3. Hollow 90° cone, Highly polished stainless steel tip  1 No


Optional Accessories At Extra Cost

  1. Bath for Penetration test with heating only :
  2. Bath for Penetration test with heating and cooling system :
  3. Grease Worker Hand operated :
  4. Grease Worker Hand operated with big Handle (for mechanical advantage)
  5. Grease Worker Electrically operated with single worker with electronic digital counter
  6. Grease Worker Electrically operated with Double worker with electronic digital counter
  7. Grease Cutter as per IP‑50, ASTM D 217
  8. Quarter scale cone with shaft as per IP‑310/75 & ASTM D 1403
  9. Half scale cone with shaft as per IP‑310/75 & ASTM D 1403
  10. Half Scale Grease Worker as per ASTM D 1403
  11. Penetration solid aluminum cone as per ASTM D 217
  12. Digital Penetration indicator instead of analog dial gauge. The penetration value is measured and indicated in digital format. Linear scale Measures the penetration distance with 0.01 mm accuracy and displays it on the digital read‑out unit.


Dimensions in Inches (L x W x H) 10 x 12 x 23
Weight (Approx.) 8 kg
