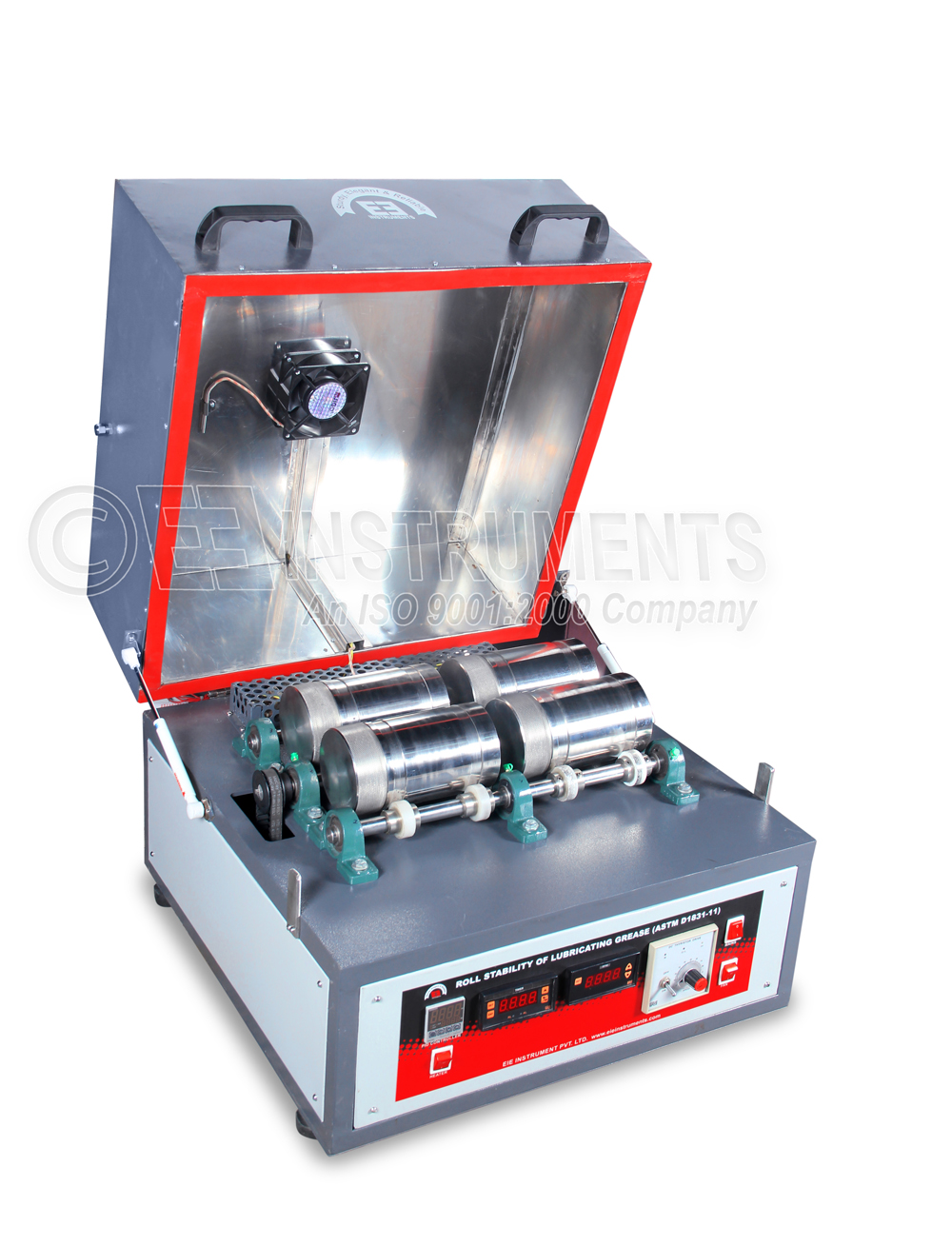

GREASE ROLL STABILITY TEST APPARATUS

Capacity

Up to 2 cylinders

Rotational Speed

10 to 200 RPM

Temperature Range

Ambient to 150 °C

Temperature Display

LED Display

Temperature Control

Microprocessor based Auto Tune PID Digital Temp Controller cum Indicator

Temperature Accuracy

± 0.1 °C

Temperature Resolution

0.1 °C

Temperature sensor

Pt - 100

Operating Voltage

110/120V, 60Hz 220/240V, 50Hz

Roller Size

ID. 60.33 ± 0.25 mm Length 176.21 ±0.25mm

Cylinder Size

ID. 90.09±0.25 mm Length 180.18 ± 0.25mm

Weight Of Roller

5 Kg ± 50 grams

Power

1.8 kW

Weight

68 kg
