Abel Flash Point Apparatus with Energy Regulator

Basic model for educational experimental purpose only. Not recommended for the serious testing and Research

Compliance Standards

1448(P:20) 2019, IP 33, 170, ISO 13736:2013, ISO 15528

Applications

Used for determination of the closed cup Flash Point of Petroleum products, their mixtures, other liquids and paints having flash point below 70°C.

Details of apparatus

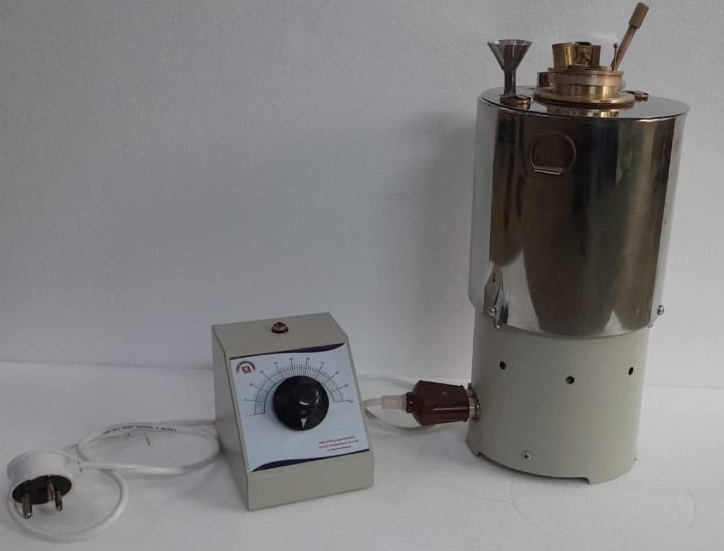

The apparatus consists of one brass cup and cover fitted with shutter mechanism test flame arrangement (Oil test jet) and stirrer placed on a water bath made of Stainless steel sheet, double walled. The outer jacket of the water bath is fitted with a stand.

(Water-bath made of copper at an extra cost of Rs. 6000.00)
